721D
21HP Kubota Diesel

Year Model:2000

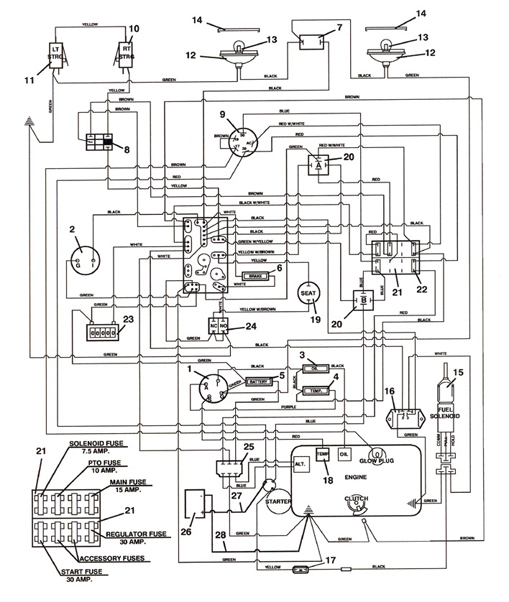

Wiring Diagram

Wiring Diagram


Click On The Part Number For Details

Item #

Description

Part Number

-

Wiring Assembly

604996

-

Decal - Console

161131

1

Coolant Temperature Gauge

141160

2

Voltmeter Gauge

141200

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Light Switch

184179

8

Clutch Switch

183925

9

Ignition Switch

183827

10

Safety Switch - Right Steering

183860

-

Right Steering Switch Mount

720160

11

Safety Switch - Left Steering

183860

-

Left Steering Switch Mount

720161

12

Worklight Assembly (Includes Item 13)

182253

13

Light Bulb

182005

14

Bezel

182251

15

Fuel Solenoid

603350

16

Module - Switch Interlock

184220

17

Fuse Holder

181735

-

Fuse

181470

18

Temperature Sender

141222

19

Seat Safety Switch

183870

20

Relay

184272

21

Fuse Block

181722

-

1 Wire Clip

184458

-

2 Wire Clip

184460

-

Double Wire Clip

184472

22

Fuse 30 Amp Auto

181470

-

Fuse 15 Amp Auto

181465

-

Fuse 10 Amp Auto

181462

-

Fuse 7.5 Amp Auto

181460

23

Hour Meter

141551

24

Brake Switch

183894

25

Voltage Regulator

185530

26

Battery

-

-

Battery Box Assembly

603104

-

Battery Box Lid Assembly

603570

-

Battery Hold Down Strap

603110

27

Battery Cable 11"

180310

-

Battery Terminal Boot

425219

28

Ground Cable 16"

180276
