Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

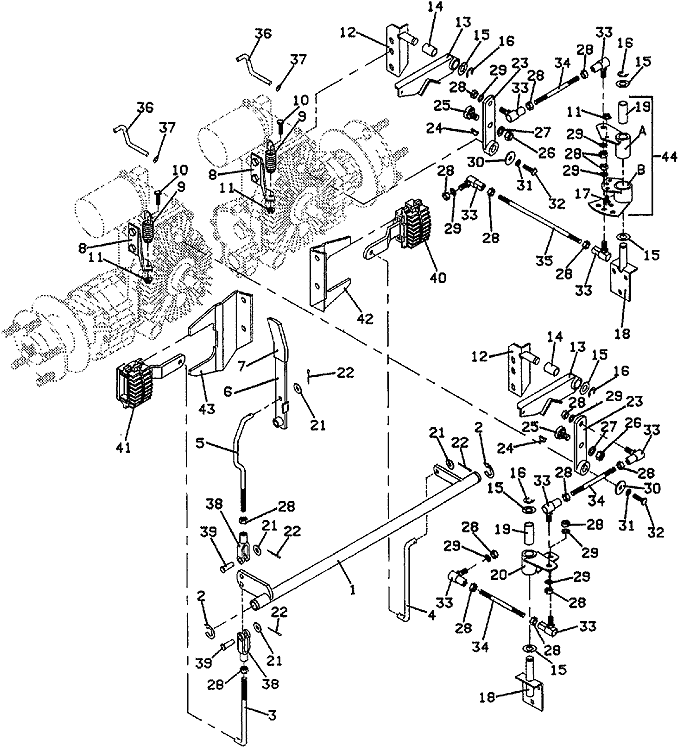

721D • Drive Linkage Assembly

1991

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Disc Brake Pivot Tube

643280

2

External Retainer

263529

3

Steering Linkage Rod

730289

4

Lower Brake Disc Rod - Left

730355

5

Adjustable Brake Disc Rod

730356

6

Brake Lever Assembly

603557

7

Handle Grip

422150

8

Bracket - Neutral Return Spring

729072

9

Extension Spring

283823

10

Bolt

243030

11

Nut

253025

12

Mount

643603

13

Neutral Return Arm w/Bearing

603084

14

Nylon Bearing

422560

15

Washer

257063

16

External Retainer

263500

17

Bolt

253173

18

Pivot

643627

19

Nylon Bearing

422585

20

Pivot Linkage w/Bearing

603567

21

Washer

257030

22

Cotter Ring

260624

23

Arm

643057

24

Woodruff Key

281823

25

Roller Assembly - Eccentric

603726

26

Nut

254450

27

Lock Washer

257412

28

Nut

254441

29

Lock Washer

257402

30

Washer

774012

31

Lock Washer

257392

32

Bolt

243025

33

Ball Joint

265615

34

Rod

780160

35

Rod

780165

36

Dump Valve Lever

730088

37

Push On Retainer

262934

38

Clevis Yoke

265537

39

Clevis Pin

261284

40

Brake Disc - Right

481120

41

Brake Disc - Left

481121

42

Brake Disc Mount - Right

725205

43

Brake Disc Mount - Left

725206

44

Linkage Pivot w/Bearing

603567
