Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

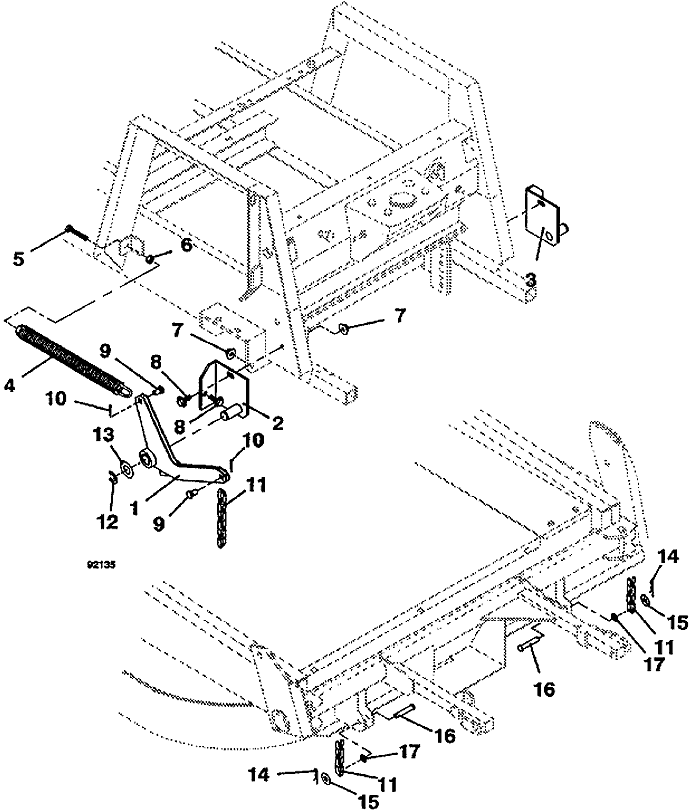

721D • Traction Kit

1991

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Rocker & Bearing Assembly

603715

2

Rocker Pivot Mount - Right

643611

3

Rocker Pivot Mount - Left

643612

4

Spring & Plug Nut Assembly

603799

5

Bolt

243361

6

Nut

254450

7

Whiz Nut

253043

8

Whiz Bolt

253203

9

Clevis Pin

261336

10

Cotter Pin

260648

11

Lift Chain

820322

12

External Retainer

263529

13

Washer

257092

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin

261362

17

Push On Retainer

262950
