Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

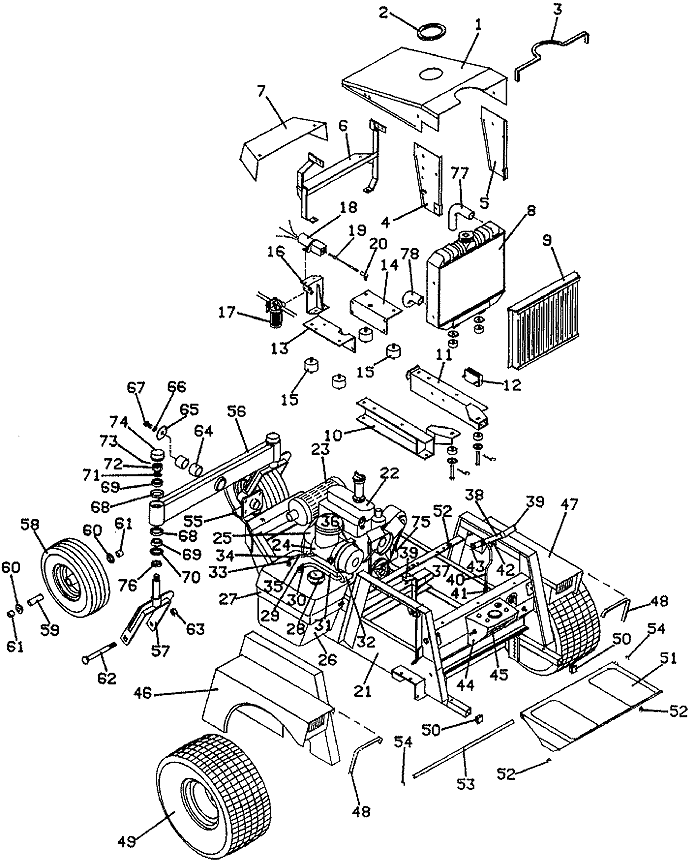

721D • Tractor Assembly

1991

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hood

643409

2

Trim

822633

3

Trim

822650

4

Grille Support - Right

643799

5

Grille Support - Left

643800

6

Rear Hood Support

643797

7

Clutch Shield

643766

8

Radiator

101610

9

Grille

643401

10

Lower Engine Mount - Right

643604

11

Lower Engine Mount - Left

643605

12

Voltage Regulator

185530

13

Upper Engine Mount - Right

643292

14

Upper Engine Mount - Left

643291

15

Vibration Isolator

424078

16

Mount - Fuel Solenoid/Filter

643591

17

Fuel Filter

101000

18

Fuel Solenoid

603350

19

Cable Assembly - Fuel Solenoid

603209

20

Ball Joint

265610

21

Tractor Frame

643392

22

Engine - Kubota Diesel

100176

23

Muffler & Gasket Assembly

603590

24

Air Filter

100940

25

Air Intake Hose

424515

26

Fuel Tank Assembly

603812

27

Mounting Bracket

643144

28

Fuel Cap w/Level

141125

29

Fuel Draw Tube

101818

30

Clamp

280261

31

Hose

821713

32

Fuel Pre Filter

101005

33

Fitting

363825

34

Clamp

280257

35

Return Fuel Line Hose

821740

36

Torsion Spring

284422

37

Throttle Assembly

603850

-

Throttle Lever Stop

722009

38

Brake Lever

603557

39

Handle Grip

422150

40

Rod

730356

41

Clevis Yoke

265537

42

Bolt

259741

43

Cotter Pin

260624

44

Console

623242

45

Panel

721076

46

Fender - Right

643352

47

Fender - Left

643353

48

Fender Edge Trim

822635

49

Wheel & Tire Assembly - 20 x 10 x 8

483921

-

Wheel - 8 x 6

483410

-

Turf Tire - 20 x 10 x 8

482471

-

Wheel & Tire - Bar Tread - Right - 21 x 11 x 8

483930

-

Wheel & Tire - Bar Tread - Left - 21 x 11 x 8

483931

-

Wheel - 8 x 9.125

483415

-

Tire - Bar Tread - 21 x 11 x 8

482480

50

Plug

422065

51

Foot Rest

603345

52

Rubber Bumper

424015

53

Rod

780658

54

External Retainer

263500

55

Rear Axle Pivot Assembly

604597

56

Beam - Dual Wheel

824510

57

Fork Assembly

604364

58

Wheel & Tire Assembly - 13 x 5 x 6

483861

-

Tire - 13 x 5.00 x 6

482350

-

Wheel - 6 x 3.25

483301

59

Spacer

902475

60

Bearing

120050

61

Spacer

902425

62

Carriage Bolt

247725

63

Lock Nut

253970

64

Bearing

833275

65

Washer

257061

66

Lock Washer

257432

67

Bolt

243560

68

Bearing Cup

123522

69

Bearing

122522

70

Seal

125855

71

Washer

257091

72

Nut

254502

73

Cotter Pin

260668

74

Dust Cap

481432

75

Oil Filter

100800

76

Spacer

282615

77

Radiator Hose - Upper

101054

78

Radiator Hose - Lower

101055

-

Decal Set - 721D

603272
