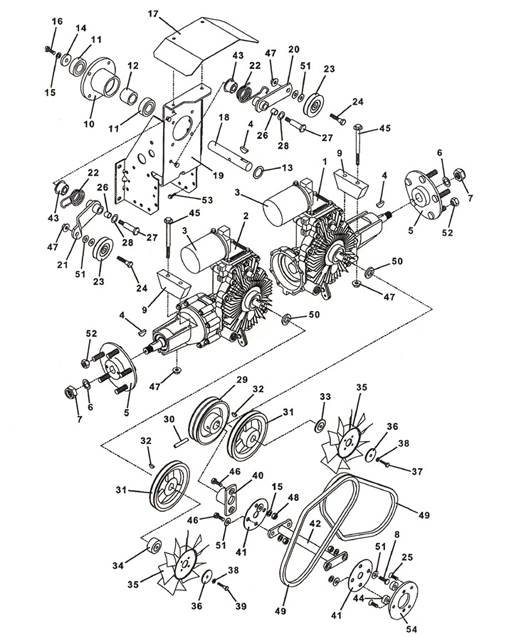

Item #
Description
Part Number
1
Hydrostatic Transmission - Right
391207
2
Hydrostatic Transmission - Left
391206
3
Hydro Oil Filter
100850
4
Woodruff Key
281845
5
Hub
603429
6
Washer
257091
7
Nut w/Nylon Insert
253500
8
Bolt
830040
9
Spacer
901745
10
Spindle Housing
320522
11
Bearing
110081
12
903650
13
257106
14
Washer Retainer
883801
15
Lock Washer
257412
16
243331
17
Shield
693768
18
Shaft Assembly
603764
19
Mount - CTR Drive
643112
20
Lower Idler Arm Assembly w/Spring
603066
21
Upper Idler Arm Assembly w/Spring
603065
22
Torsion Spring
284425
23
Idler
393312
24
243345
25
Cap Screw
270346
26
Nylon Bearing
422558
27
Shoulder Bolt
259745
28
Steel Shim
282350
29
Sheave
414554
30
Roll Pin
261061
31
415559
32
281829
33
Fan Spacer
423723
34
423724
35
Nylon Fan CCW
320856
36
774023
37
243030
38
257392
39
243040
40
824550
41
Coupling Disc
821530
42
Coupling Connector
643219
43
Bearing - Idler Arm
422750
44
Coupling Spacer
902318
45
253215
46
243330
47
Whiz Nut
253043
48
Nut
254450
49
Belt
381904
50
775002
51
257030
52
254472
53
253174
54
Coupling Adapter
783458
