grasshopper

721D
21HP Kubota Diesel

Year Model:1999

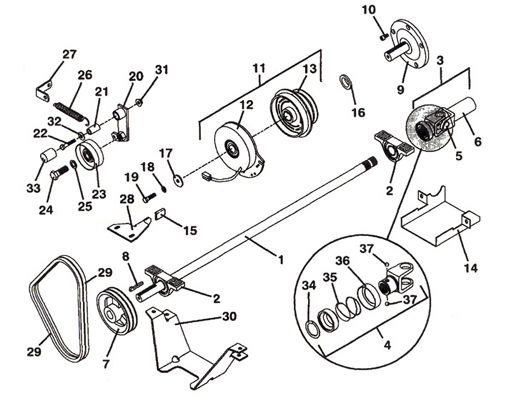

PTO Shaft & Clutch Assembly

PTO Shaft & Clutch Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Splined Power Shaft

644725

2

Pillowblock Bearing

122044

3

Sleeve Sect. Q.D. Drive Shaft

398914

4

Yoke Splined Quick Disconnect

401019

5

Cross & Bearing

121010

6

Yoke w/Sleeve

401017

7

Sheave

415640

8

Gib Key

281588

9

Clutch Stub Shaft

824637

10

Socket Head Screw

270075

11

Electric Clutch

606242

12

Field Assembly w/Brake

388869

13

Armature & Rotor Assembly

388862

14

PTO Shaft Shield

729287

15

Cover - Clutch Bracket

422088

16

Spacer

902583

17

Retaining Washer

883803

18

Lock Washer

257412

19

Bolt

243337

20

Idler Arm (Includes Bearings & Item21)

824499

-

Oilite Bearing

121758

21

Bearing Pivot Shaft

881105

22

Bolt

243355

23

Idler Pulley

393175

24

Bolt

243805

25

Lock Washer

257452

26

Spring Extension w/Swivel

283820

27

Idler Spring Bracket

732524

28

Clutch Anti Rotation Bracket

725118

29

Drive Belt (2 Required)

381914

30

Rear Sheave Guard

725286

31

Whiz Nut

253043

32

Flat Washer

257040

33

Vinyl Cap

422098

34

External Retainer

263660

35

Compression Spring

283525

36

Spring Cover

NLA

37

Steel Ball

300014
