Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

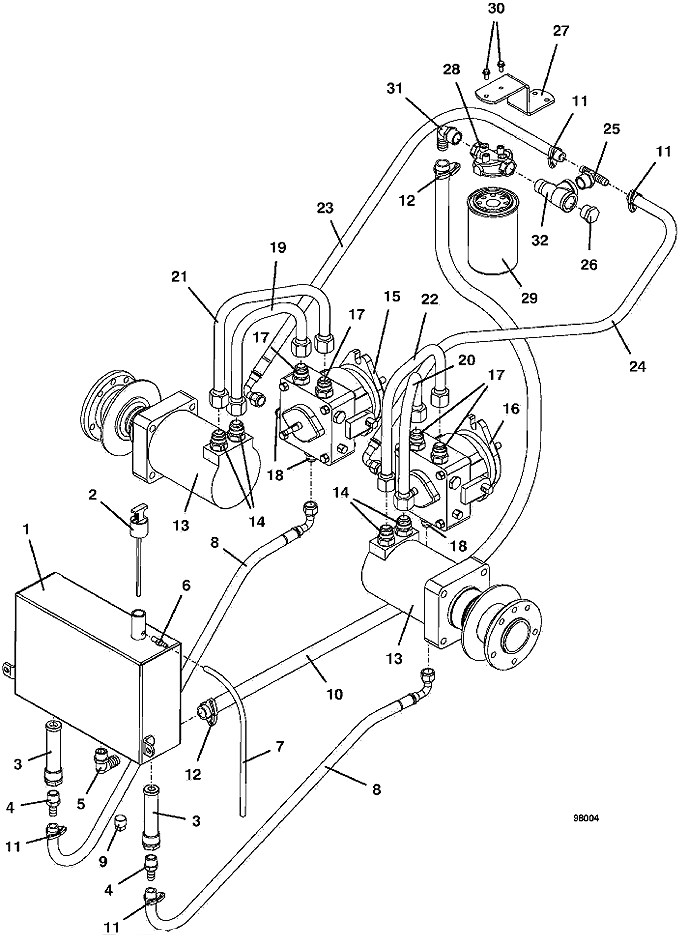

721D2 • Reservoir & Hose Assembly

1999

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700G2 Reservoir Assembly

603713

2

Plastic Oil Reservoir Dipstick

100729

3

Tank Filter

366555

4

Nylon Fitting

363849

5

Nylon Fitting

363853

6

Straight Barbed Fitting

363826

7

Clear Vent Hose

821724

8

Hose Assembly

424331

9

1/2 inch Threaded Plug

365520

10

.75 Hydraulic Hose

821804

11

Spring Hose Clamp

280265

12

Plastic Snap Hose Clamp

280281

13

Wheel Motor with Hub

603596

14

Fitting Adapter

360070

-

O-Ring

126534

-

O-Ring

126537

15

right Hydro Pump

391453

16

left Hydro Pump

391452

17

Fitting Adapter

360065

-

O-Ring

126534

-

O-Ring

126535

18

Steel Boss O-Ring Fitting

363832

19

Tube Assembly

424625

20

Tube Assembly

424626

21

Tube Assembly

424631

22

Tube Assembly

424632

23

Hose Assembly

424344

24

Hose Assembly

424343

25

Nylon Fitting

363860

26

3/4 inch Hex Head Nylon Plug

365527

27

721DG2 Oil Filter Mount

732609

28

Filter Base

101026

29

Transmission Oil Filter

100860

30

Hex Whiz Bolt

253173

31

Steel Fitting

363880

32

Tee

366826
