Genuine OEM Grasshopper® Mower Parts Diagrams

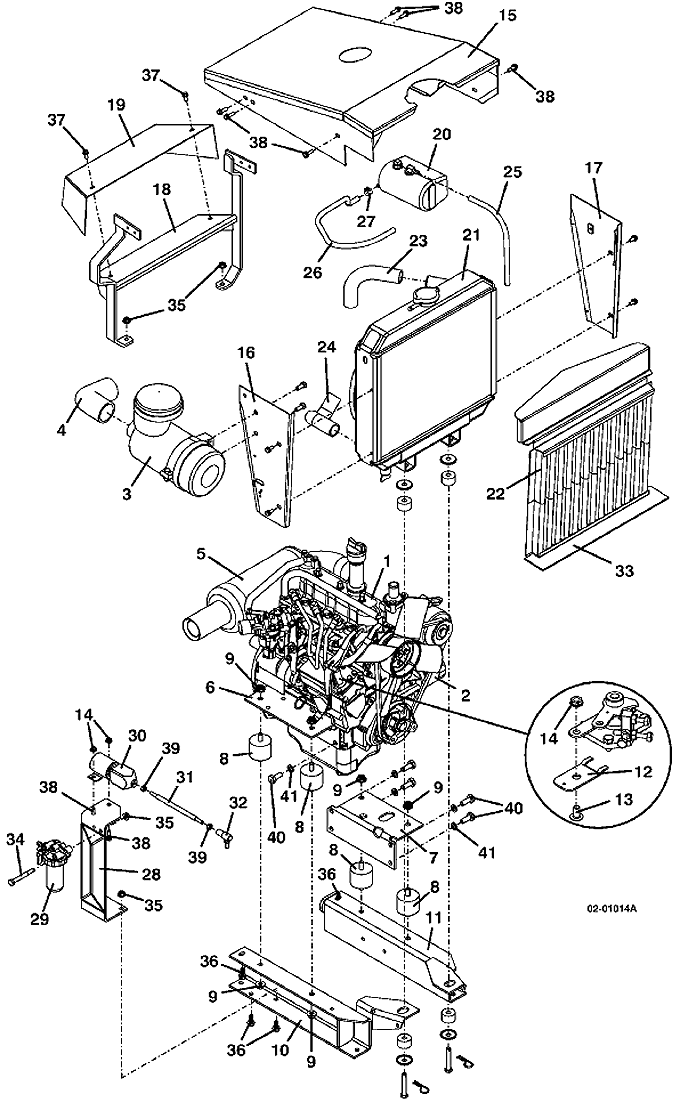

721D2 • Engine Assembly
2000
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Kubota Diesel Engine |
100176 |
2 |
Kubota Oil Filter |
100800 |
3 |
Kubota Air Filter |
100940 |
4 |
Formed Air Intake Hose |
424515 |
5 |
Muffler & Gasket Assembly |
603590 |
- |
Kubota Flange Exhaust Gasket |
101040 |
6 |
Upper Right Engine Mount |
643292 |
7 |
Upper Left Engine Mount |
643291 |
8 |
Vibration Isolator |
424078 |
9 |
Whiz Nut |
253043 |
10 |
Lower Right Engine Mount |
643604 |
11 |
Lower Left Engine Mount |
643605 |
12 |
Extension Linkage |
723016 |
13 |
Truss Whiz Bolt |
253176 |
14 |
Whiz Nut |
253025 |
15 |
700 Hood with Decals |
693300 |
16 |
Right Grille Support |
643799 |
17 |
Left Grille Support with Decal |
693260 |
18 |
Rear Hood Support |
643797 |
19 |
Clutch Shield |
643766 |
20 |
Expansion Tank |
422012 |
21 |
Kubota Radiator |
101610 |
22 |
700G2 Grille Assembly |
604380 |
23 |
Upper Radiator Hose |
101054 |
24 |
Lower Radiator Hose |
101055 |
25 |
Clear Vent Hose |
821748 |
26 |
Fuel Line |
821749 |
27 |
Spring Hose Clamp |
280260 |
28 |
Solenoid / Filter Mount |
755065 |
29 |
Kubota Fuel Filter |
101000 |
30 |
Fuel Solenoid Assembly |
603350 |
31 |
Fuel Solenoid Cable Assembly |
603209 |
32 |
Ball Joint |
265610 |
33 |
Grille Seal |
424161 |
- |
700D2 Rubber Seal Strap |
772054 |
