Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

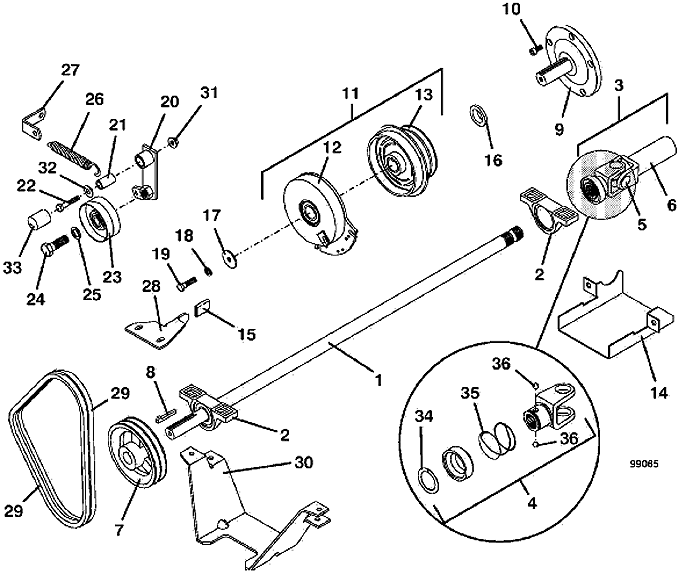

721D2 • PTO Shaft & Clutch Assembly

2000

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

41.5 Power Shaft

644725

2

SC Pillowblock Bearing

122044

3

UN Half Sleeve

398914

4

Quick Disconnect Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401017

7

Sheave

415650

8

Square Gib Key

281588

9

Clutch Stub Shaft

824637

10

M8 Socket Head Screw

270075

11

Clutch Integral Plug

388769

12

Field Assembly with Brake

388872

13

Armature & Rotor Assembly

388862

14

PTO Shaft Shield

729287

15

Clutch Cover Bracket

422088

16

Spacer

902583

17

Washer

883803

18

Lock Washer

257412

19

GR8 Hex Bolt

243337

20

PTO Idler Arm

824499

-

Oilite Bearing

121758

21

Pivot Shaft Bearing

881105

22

Hex Bolt

243355

23

Idler

393175

24

Hex Bolt

243805

25

Lock Washer

257452

26

Extension Spring with Swivel

283820

27

928 Idler Spring Bracket

732524

28

700 Anti-Rotation Bracket

725118

29

Belt

381914

30

700 Sheave Guard

725286

31

Whiz Nut

253043

32

Washer

257040

33

Vinyl Cap

422098

34

External Retainer

263660

35

Compression Spring

283525

36

Steel Ball

300014
