Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

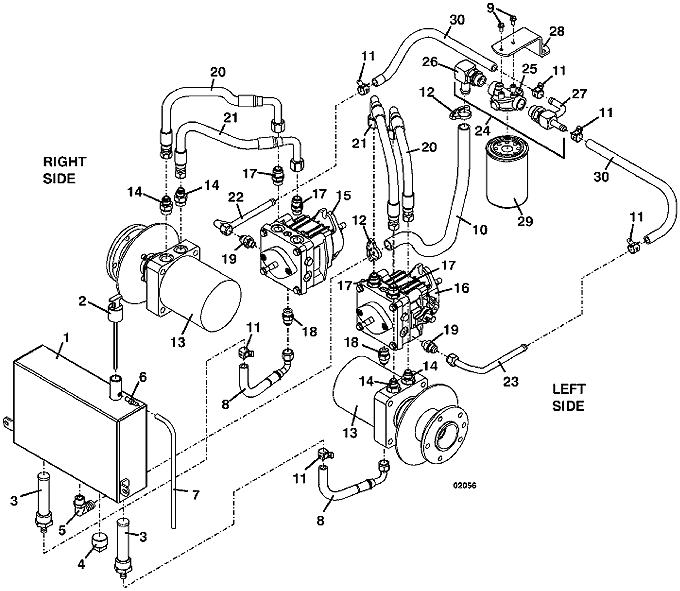

721D2 • Reservoir & Hose Assembly

2004

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700G2 Reservoir Assembly

603703

2

Plastic Oil Reservoir Dipstick

100729

3

Strainer

366556

4

1 inch Threaded Plug

365535

5

Nylon Fitting

363853

6

Straight Barbed Fitting

363826

7

Clear Vent Hose

821724

8

Hose Assembly

424331

9

Hex Whiz Bolt

253173

10

.75 Hydraulic Hose

821804

11

Spring Hose Clamp

280265

12

Plastic Snap Hose Clamp

280281

13

Wheel Motor with Hub

603602

14

O-Ring Adapter

360063

-

O-Ring

126527

-

O-Ring

126529

-

O-Ring

126537

-

O-Ring

126534

-

Fitting Adapter

360069

15

right Hydro Pump

391463

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

16

left Hydro Pump

391462

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

17

Fitting Adapter

360064

-

O-Ring

126529

-

O-Ring

126535

18

Steel Boss O-Ring Fitting

363832

19

Fitting Adapter

360081

20

Hose Assembly

424371

-

Hose Assembly

424378

21

Hose Assembly

424372

-

Hose Assembly

424379

22

Tube Assembly

424602

23

Tube Assembly

424603

24

G2 Filter Base Assembly

101020

25

Filter Base

101027

26

12 Bead O-Ring Adapter

360076

27

O-Ring Adapter with 90 degree Elbow

360074

28

721DG2 Oil Filter Mount

732609

29

Transmission Oil Filter

100860

30

Hydraulic Hose

821799
