Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

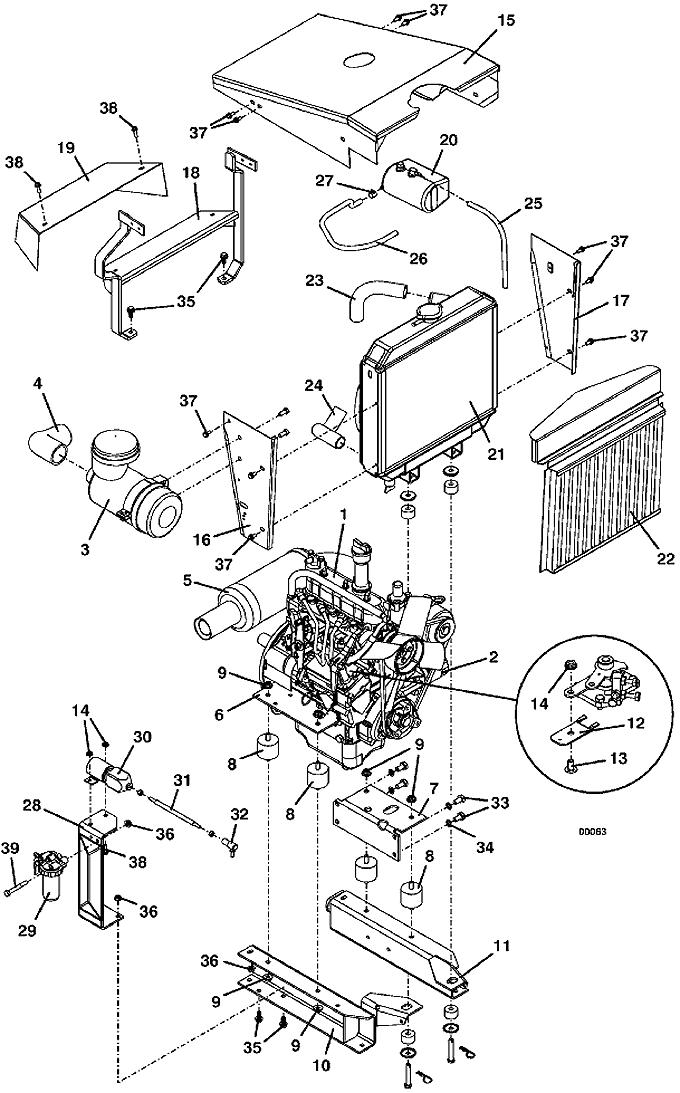

721D • Engine Assembly

2004

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100176

2

Kubota Oil Filter

100800

3

Kubota Air Filter

100940

4

Formed Air Intake Hose

424515

5

Muffler & Gasket Assembly

603590

-

Kubota Exhaust Flange Gasket

101040

6

Upper right Engine Mount

643292

7

Upper left Engine Mount

643291

8

Vibration Isolator

424078

9

Whiz Nut

253043

10

Lower right Engine Mount

643604

11

Lower left Engine Mount

643605

12

Linkage Extension

723063

13

Truss Whiz Bolt

253176

14

Whiz Nut

253025

15

700 Hood with Decals

693300

16

right Grille Support

643799

17

left Grille Support with Decal

693260

18

rear Hood Support

643797

19

Clutch Shield

643766

20

Expansion Tank

422012

21

Kubota Radiator

101610

22

Radiator Grille with Guard & Decal

693257

23

Upper Radiator Hose

101054

24

Lower Radiator Hose

101055

25

Clear Vent Hose

821748

26

Hose

821749

27

Spring Hose Clamp

280260

28

Solenoid / Filter Mount

755065

29

Kubota Fuel Filter

101000

30

Fuel Solenoid Assembly

603350

31

Fuel Solenoid Cable Assembly

603209

32

Ball Joint

265610

33

Hex Bolt

271120

34

Lock Washer

275580

35

Hex Flange Whiz Bolt

253192

36

Whiz Nut

253035

37

Hex Whiz Bolt

253173

38

Hex Whiz Bolt

253175

39

Whiz Bolt

253197
