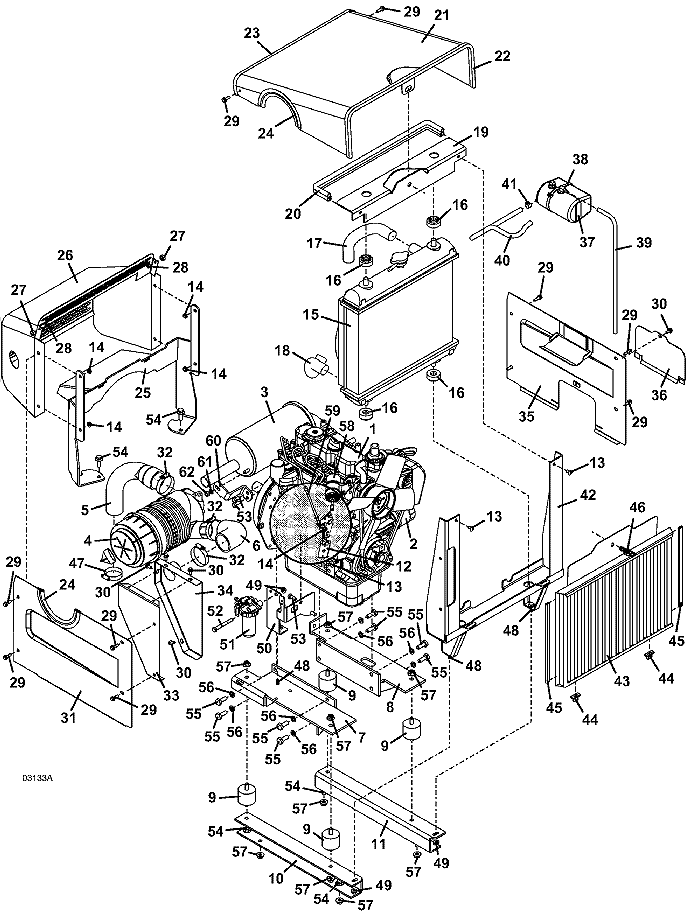

Item # |
Description |
Part Number |
1 |
Kubota Diesel Engine MOD D902 |
100177 |
2 |
Kubota Oil Filter |
100800 |
3 |
Muffler - Kubota 902 |
101235 |
- |
Muffler Gasket - 902 |
101039 |
4 |
Nelson 90 Deg Air Cleaner |
100207 |
- |
Air Cleaner Cover Clip |
100197 |
- |
Air Cleaner Cover |
100800 |
- |
Dust Ejector |
100202 |
- |
Kubota Rain Cap |
100203 |
- |
Outer HD Air Filter |
100936 |
- |
Inner HD Air Filter |
100937 |
5 |
Breather/Manifold Hose |
424526 |
6 |
Breather Inlet Hose |
424520 |
7 |
Right Engine Mount 902D |
644286 |
8 |
Left Engine Mount 902D |
644287 |
9 |
Vibration Isolator |
424078 |
10 |
Right Engine Mount Rail 902D |
725383 |
11 |
Left Engine Mount Rail 902D |
725384 |
12 |
Linkage Extension - 928 |
723063 |
13 |
Truss Whiz Bolt .250-20 x .500 |
253176 |
14 |
Whiz Nut .250-20 |
253025 |
15 |
Radiator - Kubota 902 |
101612 |
16 |
Radiator Isolator Bushing - MT |
101080 |
17 |
902 Upper Radiator Hose |
101058 |
18 |
902 Lower Radiator Hose |
101059 |
19 |
Radiator Channel Clamp |
729327 |
20 |
Hood Bulb Seal |
822518 |
21 |
Upper Hood |
644293 |
22 |
Front Hood Trim |
822639 |
23 |
Rear Hood Trim |
822637 |
24 |
Air Cleaner Trim Seal |
822513 |
25 |
722D Hood Support |
644807 |
26 |
902D Hood- W/A |
644329 |
27 |
Spacer |
902297 |
28 |
Nylon Insert Nut .250-20 |
253440 |
29 |
Whiz Hex Bolt .25-20 x .75 |
253175 |
30 |
Whiz Hex Bolt .250-20 x .500 |
253173 |
31 |
Hood Side - right |
722712 |
32 |
Screw Type Hose Clamp 2.750 |
280305 |
33 |
Air Intake Box Mount |
644066 |
34 |
Air Intake Box |
644059 |
35 |
722D Hood Side - left W/A |
644322 |
36 |
Oil filter Cover |
722722 |
37 |
Expansion Tank |
422012 |
38 |
Tie |
423154 |
39 |
Clear Vent Hose |
821748 |
40 |
Fuel Line |
821749 |
41 |
Spring Hose Clamp |
280260 |
42 |
Lower Radiator Mount - 902 |
644658 |
43 |
Grille - w/Guard 902D |
644668 |
44 |
Rear Belt Isolator Shield |
422090 |
45 |
Radiator Grille Trim |
822636 |
46 |
Swell Action Latch |
281305 |
47 |
Screw Type Hose Clamp |
280303 |
48 |
Whiz Flange Bolt .312-18 x .75 |
253192 |
49 |
Whiz Nut |
253035 |
50 |
Fuel Filter Mount |
794198 |
51 |
Kubota Fuel Filter |
101000 |
52 |
Hex Bolt .312-18 x 2.750 |
243240 |
53 |
Hex Bolt |
271021 |
54 |
Whiz Flange Bolt .375-16 x 1 |
253203 |
55 |
Hex Bolt |
271120 |
56 |
Lock Washer |
275580 |
57 |
Whiz Nut |
253043 |
58 |
Fuel Valve Solenoid |
101046 |
59 |
Manual Stop Lever Extension |
246880 |
- |
Red Vinyl Cap |
422092 |
60 |
Muffler Support Snap |
732601 |
61 |
Lock Washer |
257402 |
62 |
Hex Nut |
274145 |
