Genuine OEM Grasshopper Lawn Mower Parts

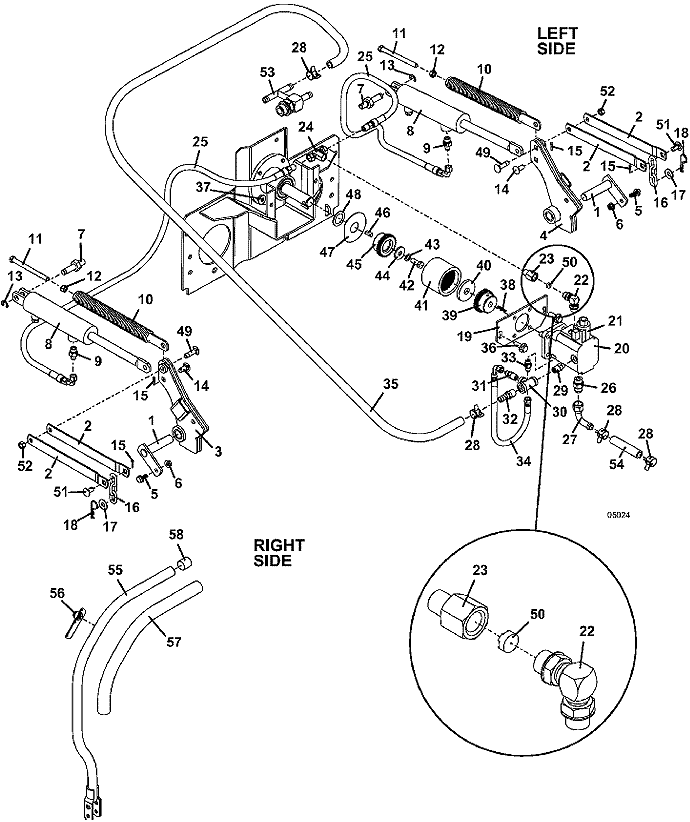

Genuine OEM Grasshopper® Mower Parts Diagrams

722D2 • Optional Hydraulic Lift Assembly
serial numbers 5517203 and above

2005

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Traction Kit W/A Pin

644635

2

600 w/SL Deck Lift Strap

732410

3

Rocker w/o Extension - right

603701

-

Oilite Bearing

121766

4

Rocker w/o Extension - left

603702

-

Oilite Bearing

121766

5

Hex Flange Whiz Bolt .312-18 x .75

253192

6

Whiz Nut

253035

7

Pin - Cylinder Mount w/Groove

887119

8

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder HD Seal Kit

290096

9

Adapter O Ring

360052

10

Traction Kit Spring Assembly

605760

11

Hex Bolt

243395

12

Nut .375-16

254450

13

External Retainer

263500

14

Clevis Pin

261339

15

Cotter Pin

260648

16

Lift 3 Links Chain

820317

17

Washer

257040

18

Hair Pin

260523

19

Pump Mount Plate

725326

20

Hydraulic Pump w/Solenoid Valve - CCW

290074

21

Hydraulic Valve Solenoid

144950

22

90 degree Adapter O-Ring

360055

23

Adapter O-Ring

360045

24

Adapter Swivel Tee

360005

25

Hose Assembly

424310

26

Steel O Ring Boss Fitting

363832

27

Fitting

363857

28

Spring Hose Clamp

280265

29

Adapter O-Ring

360040

30

Reducer Tee

366115

31

Adapter Fitting

360012

32

Brass Hose Insert

360260

33

Adapter O-ring

360050

34

Hose Assembly

424302

35

.5 Hydraulic Hose

821806

36

Whiz Flange Bolt

253203

37

Whiz Nut

253043

38

Square Key

281540

39

Coupler Hub

388576

40

Coupling Stabilizer

424150

41

Nylon Coupler Sleeve

388560

42

Hex Bolt

243331

43

Lock Washer

257412

44

Washer

774020

45

Lower Flex Coupler

831039

46

Square Key

281580

47

Washer

770045

48

Washer

257106

49

Carriage Bolt .375 x 1.375

247254

50

Flow Restrictor

780507

51

Clevis Pin

261336

52

Lock Nut

253890

53

Beaded O-ring Adapter 3

360075

54

Hydraulic Hose

821781

55

Wide STD Strg Lever Assembly w/SW

604779

56

Hyd Lift Switch / MT Assembly

604799

57

Handle Grip

422179

58

.75 ID Vinyl Cap

422095
