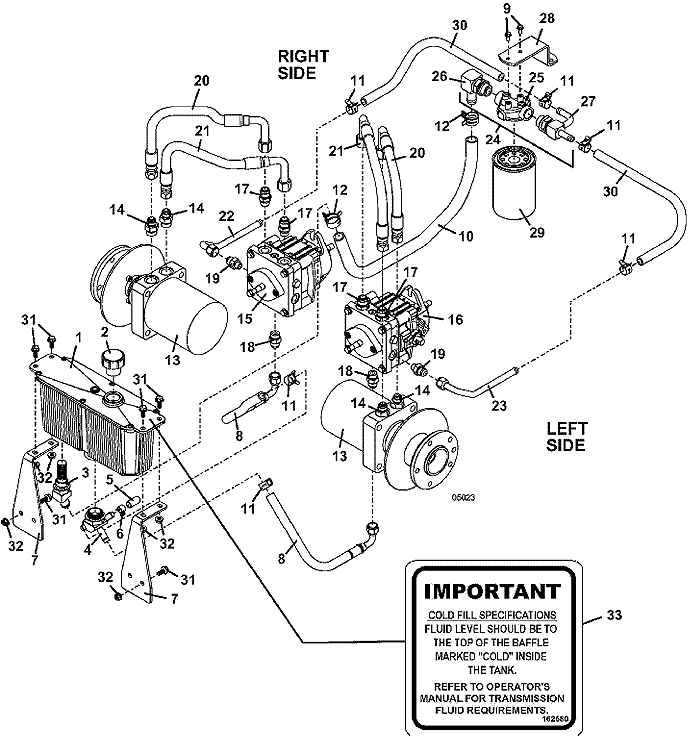

1

Oil Tank Assembly

101690

2

Fill Cap

100760

3

Fitting w/Diffuser

366571

4

Triple Barb Fitting

366570

5

Manifold Fitting Cap

422102

6

Spring Hose Clamp

280263

7

Aluminum Oil Tank Mount -right

755128

8

Hose Assembly

424349

9

Hex Whiz Bolt

253173

10

.75 Hydraulic Hose

821804

11

Spring Hose Clamp

280265

12

Spring Hose Clamp

280268

13

Wheel Motor with Hub

603602

14

Adapter O-Ring

360063

-

O-Ring

126527

-

O-Ring

126537

15

Hydro Pump - right

391463

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

16

Hydro Pump - left

391462

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

17

Adapter Fitting

360064

-

O-Ring

126529

-

O-Ring

126535

18

Steel O-Ring Boss Fitting

363832

19

Adapter Fitting

360081

20

Hose Assembly

424371

21

Hose Assembly

424372

22

Tube Assembly - right

424602

23

Tube Assembly - left

424603

24

Filter Base Assembly

101020

25

Filter Base

101027

26

Adapter O-Ring

360076

27

Adapter O-Ring w/90 degree Elbow

360074

28

721DG2 Oil Filter Mount

732609

29

Transmission Oil Filter

100860

30

Hydraulic Hose

821799

31

Hex Flange Whiz Bolt

253192

32

Whiz Nut

253035

33

Oil Specification Decal

162580
