Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

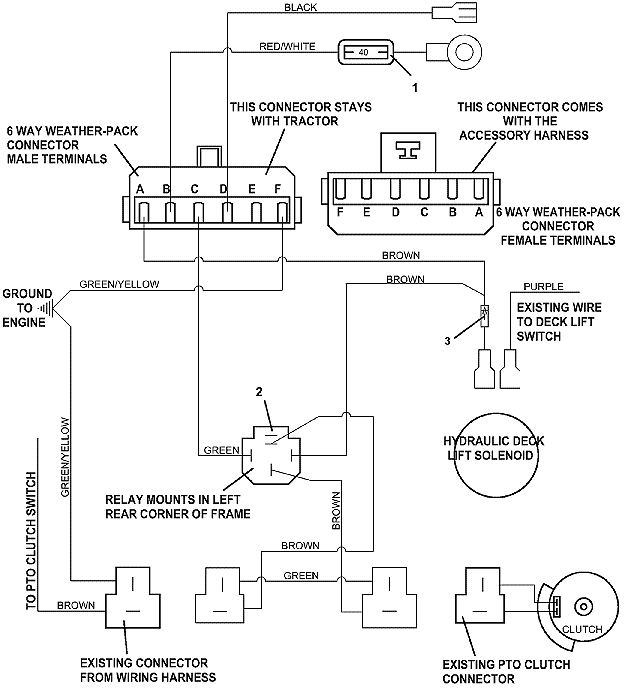

722D2 • Universal Harness

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Auto ATC Fuse, 40 amp

181475

2

12VDC Relay with Mount

184271

2

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

3

800v Diode

202105

4

Universal Wire Assembly - w/WP (2007)

605959
