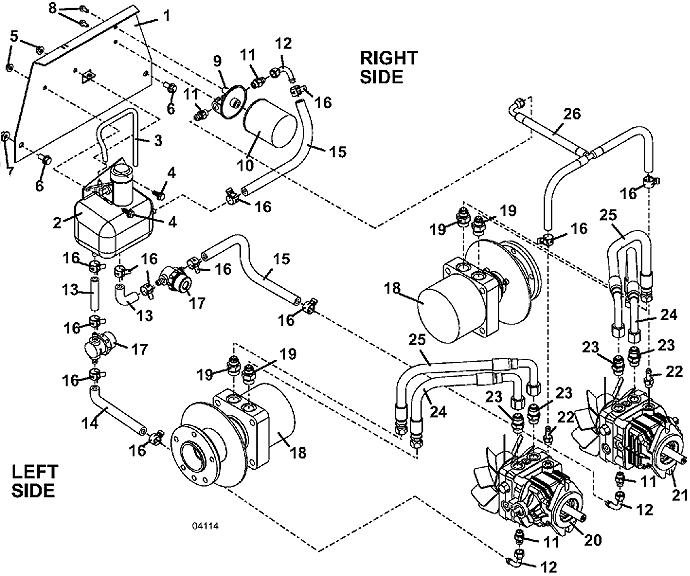

Item # |
Description |
Part Number |
1 |
Filter Base Plate |
723225 |
2 |
Oil Reservoir |
822332 |
- |
Reservoir Cap with Gasket |
421990 |
3 |
Clear Vent Hose |
821724 |
4 |
Hex Flange Whiz Bolt |
253192 |
5 |
Whiz Nut |
253035 |
6 |
Whiz Bolt |
253200 |
7 |
Whiz Nut |
253043 |
8 |
Hex Whiz Bolt |
253173 |
9 |
M1 Series Filter Base |
101024 |
10 |
Hi-Efficiency Transaxle Oil Filter |
100855 |
11 |
Adapter |
360057 |
12 |
Fitting |
363846 |
13 |
Hydraulic Hose |
821792 |
14 |
.75 Hydraulic Hose |
821786 |
15 |
Hydraulic Hose |
821784 |
16 |
Spring Hose Clamp |
280264 |
17 |
In-Line Strainer |
366551 |
18 |
Wheel Motor with Hub |
603611 |
19 |
Adapter O-Ring |
360063 |
- |
O-Ring |
126527 |
- |
O-Ring |
126537 |
20 |
H2 left Hydro Pump |
391434 |
21 |
H2 right Hydro Pump |
391435 |
22 |
O-Ring Boss Fitting |
363864 |
23 |
Adapter Fitting |
360064 |
- |
O-Ring |
126529 |
- |
O-Ring |
126535 |
24 |
Hose Assembly |
424371 |
25 |
Hose Assembly |
424372 |
26 |
Hose Assembly |
424316 |
