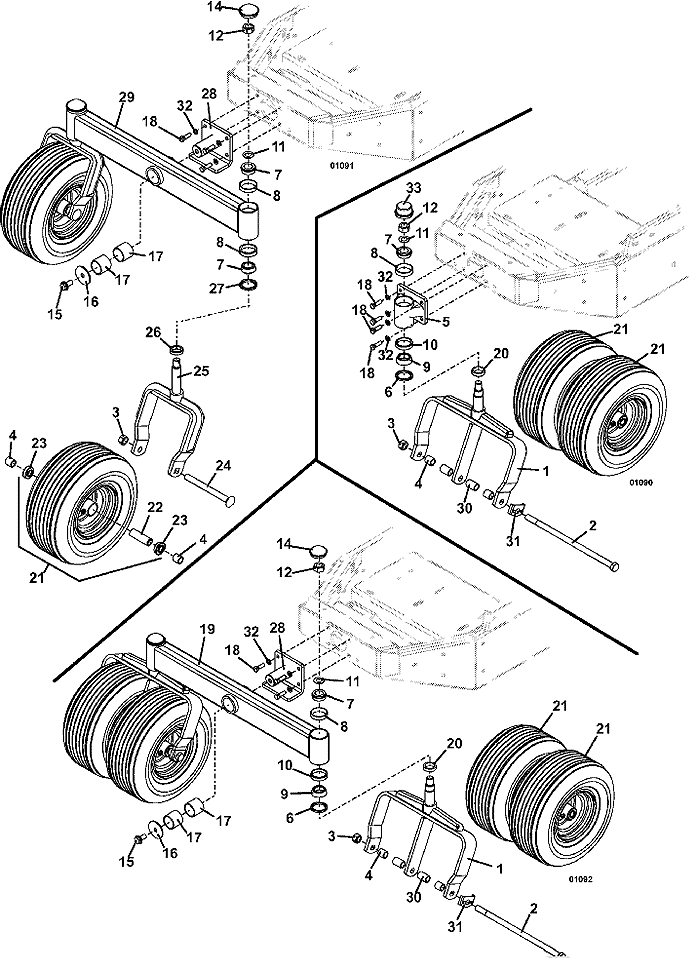

Item # |
Description |
Part Number |
1 |
Dual Fork & Lock Nut Assembly |
604366 |
2 |
Hex Bolt |
243922 |
3 |
Lock Nut |
253970 |
4 |
Axle Spacer |
902425 |
5 |
Dual Fork Pivot Housing Assembly |
604595 |
6 |
Seal |
125855 |
7 |
Taper Bearing |
122522 |
8 |
Bearing Cup |
123522 |
9 |
Taper Bearing |
122523 |
10 |
Bearing Cup |
123521 |
11 |
Washer |
257091 |
12 |
Lock Nut |
253992 |
14 |
Domed Dust Cap |
481434 |
15 |
Whiz Bolt |
253243 |
16 |
Washer |
257061 |
17 |
Reamed Oilite Bearing |
833275 |
18 |
GR 8 Hex Bolt |
243334 |
19 |
Wide Dual Beam |
824508 |
20 |
Spacer |
830420 |
21 |
13 x 6.5 x 6 Wheel & Tire with Bearing & Spacer |
483865 |
- |
13 x 6.50 x 6 Ribbed Tire |
482355 |
- |
6 x 4.5 tan Wheel without Bearings |
483306 |
22 |
Rear Wheel Bearing Spacer |
902475 |
23 |
Ball Bearing |
120050 |
24 |
Carriage Bolt |
247725 |
25 |
Fork & Lock Nut Assembly |
604365 |
26 |
Spacer |
282615 |
27 |
Seal |
125855 |
28 |
Rear Axle Pivot Assembly |
604597 |
29 |
Dual Wheel Beam |
824510 |
30 |
Dual Wide Tire Spacer |
902427 |
31 |
Fork Bolt Lock |
723008 |
32 |
Lock Washer |
257412 |
33 |
Dust Cap |
481432 |
