Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

725 • PTO Shaft & Clutch Assembly

1992

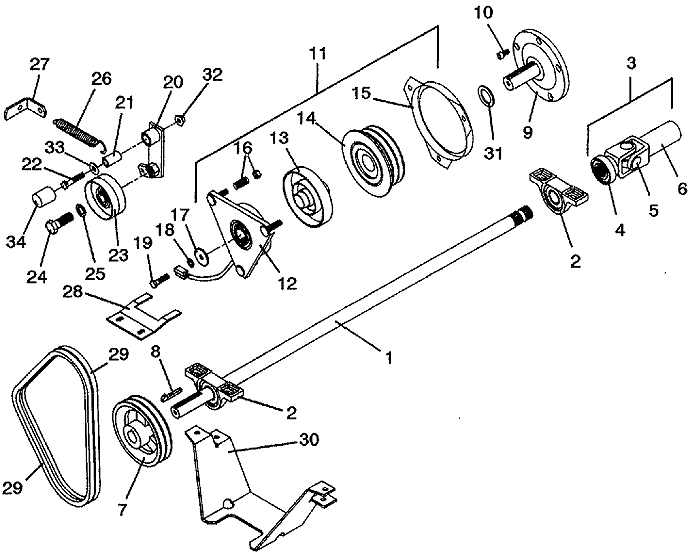

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

41.5 Power Shaft

644725

2

Pillowblock SC Bearing

122044

3

UN Half Sleeve

398914

4

Quick Disconnect Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401015

7

Sheave

415650

8

Square Gib Key

281588

9

Clutch Stub Shaft Kit

824637

10

M8 Socket Head Screw

270075

11

MS 1.25 Clutch Kit Assembly

604182

12

Field Assembly

388854

13

Rotor Assembly

388855

14

Armature with Pulley

388792

15

Brake Drum

388793

16

Spring/Nut Assembly

388791

17

Washer

883803

18

Lock Washer

257412

19

GR8 Hex Bolt

243337

20

PTO Idler Arm Assembly

824499

-

Oilite Bearing

121758

21

Pivot Shaft Bearing

881105

22

Hex Bolt

243355

23

Idler

393175

24

Hex Bolt

243805

25

Lock Washer

257452

26

Extension Spring with Swivel

283820

27

Idler Spring Bracket

732539

28

Anti-Rotation Clutch Bracket

729088

29

Belt

381914

30

700 Sheave Guard

725286

31

Washer

257116

32

Whiz Nut

253043

33

Washer

257040

34

Vinyl Cap

422098
