Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

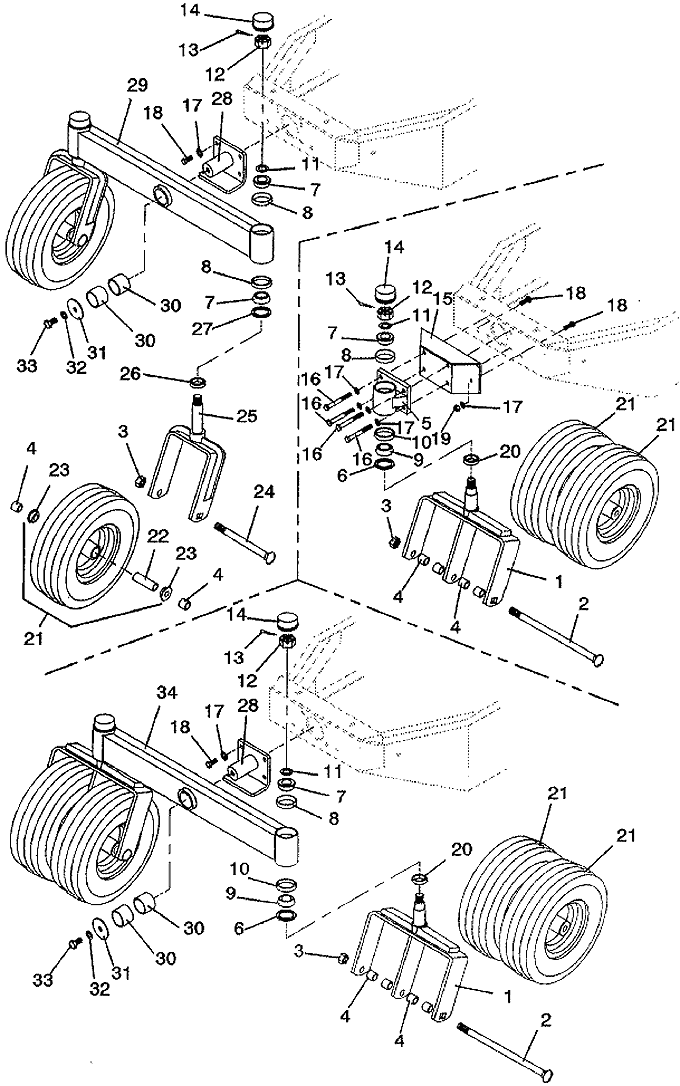

725 • Tail Wheel Options

1992

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604363

2

Fork 13 Bolt Assembly

604153

3

Lock Nut

253970

4

Axle Spacer

902425

5

Dual Fork Pivot Housing Assembly

604595

6

Seal

125855

7

Tapered Bearing

122522

8

Bearing Cup

123522

9

Tapered Bearing

122523

10

Bearing Cup

123521

11

14 GA Bushing Washer

257091

12

Nut

254502

13

Cotter Pin

260668

14

Dust Cap

481432

15

Pivot Mount Adapter

643015

16

Hex Bolt

243375

17

Lock Washer

257412

18

Hex Bolt

243330

19

Nut

254450

20

Spacer

830420

21

13 x 5 x 6 Wheel & Tire with Bearing & Spacer

483861

-

13 x 5 x 6 Ribbed Tubeless Tire

482350

-

6 x 3.25 Tan Wheel with Bearing & Spacer

483301

22

rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247725

25

Rear Fork & Lock Nut Assembly

604364

26

Spacer

282615

27

Seal

125855

28

Rear Axle Pivot Assembly

604597

29

Dual Wheel Beam

824510

30

Reamed Oilite Bearing

833275

31

Washer

257061

32

Lock Washer

257432

33

Hex Bolt

243560

34

Dual-Wide Beam

824508

return to 725 index return to top of page
