Genuine OEM Grasshopper® Mower Parts Diagrams

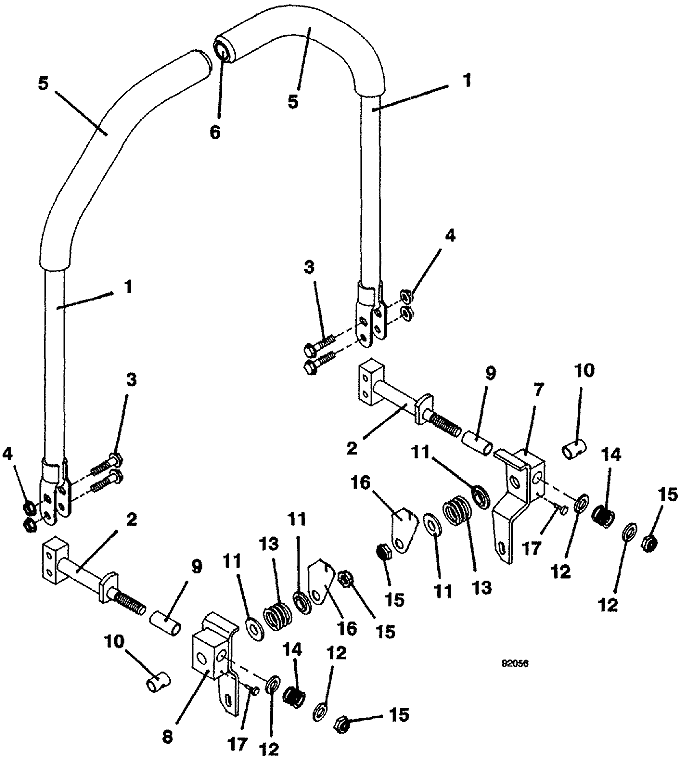

725 • Steering Assembly
1994
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Steering Lever |
643497 |
2 |
Steering Lever Mount |
603558 |
3 |
Hex Flange Whiz Bolt |
253195 |
4 |
Whiz Nut |
253035 |
5 |
Handle Grip |
422179 |
6 |
.75 inch ID Vinyl Cap |
422095 |
7 |
right Steering Ball Joint Pivot |
643660 |
8 |
left Steering Ball Joint Pivot |
643661 |
9 |
Nylon Bearing |
422580 |
10 |
Nylon Bearing with Slot |
422561 |
11 |
Washer |
257067 |
12 |
Washer |
257063 |
13 |
Compression Spring |
283381 |
14 |
Compression Spring |
283324 |
15 |
Nut with Nylon Insert |
253470 |
16 |
700 Spring Plate |
772012 |
17 |
1/8 inch diameter Plastic Plug |
422055 |
