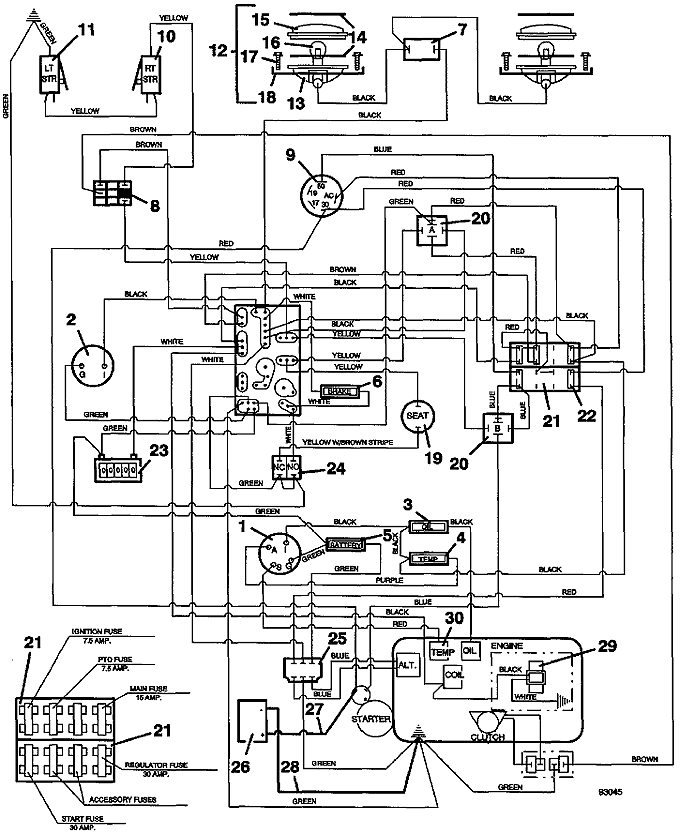

725 • Wiring & Lights
1994
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Zoned Electric Temperature Gauge |
141160 |
2 |
Voltimeter Gauge |
141200 |
3 |
Oil Indicator Light |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Rocker Switch |
184179 |
8 |
Push/Pull Switch |
183925 |
9 |
Kubota Sealed Key Switch |
183827 |
10 |
Lever Switch |
183860 |
- |
right Steering Switch Mount |
720160 |
11 |
Lever Switch |
183860 |
- |
left Steering Switch Mount |
720161 |
12 |
Worklamp Assembly |
603400 |
13 |
Rectangular Lamp Housing |
182350 |
14 |
Lamp Assembly Gasket |
420550 |
15 |
Rectangular Lamp Lens |
182400 |
16 |
Worklamp Light Bulb |
182000 |
17 |
#10 Screw |
252057 |
18 |
Worklight Clamp |
720163 |
19 |
Seat Switch |
183870 |
20 |
12v DC Relay |
184272 |
- |
Type 1 6mm Push-On |
184570 |
- |
.250 Fast-On Terminal |
184581 |
- |
5 Way Female Connector |
184926 |
21 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Fuse Clip |
184472 |
22 |
30 amp ATC Auto Fuse |
181470 |
- |
15 amp ATC Auto Fuse |
181465 |
- |
7.5 amp ATC Auto Fuse |
181460 |
23 |
Snap-In Hour Meter |
141551 |
24 |
Brake Interlock Switch |
183894 |
25 |
12v Voltage Regulator |
185530 |
26 |
12 Volt Side Post Wet Battery |
180130 |
- |
Battery Box |
643135 |
- |
Battery Box Cover |
643241 |
- |
Battery Clamp |
720604 |
27 |
11" Red Battery Cable |
180310 |
- |
Starter Terminal Boot |
425219 |
28 |
16" Black Battery Cable |
180276 |
29 |
Electric Fuel Pump |
101510 |
30 |
Temperature Sender |
141222 |
31 |
721/725 Console Wiring Assembly |
604955 |
