Genuine OEM Grasshopper® Mower Parts Diagrams

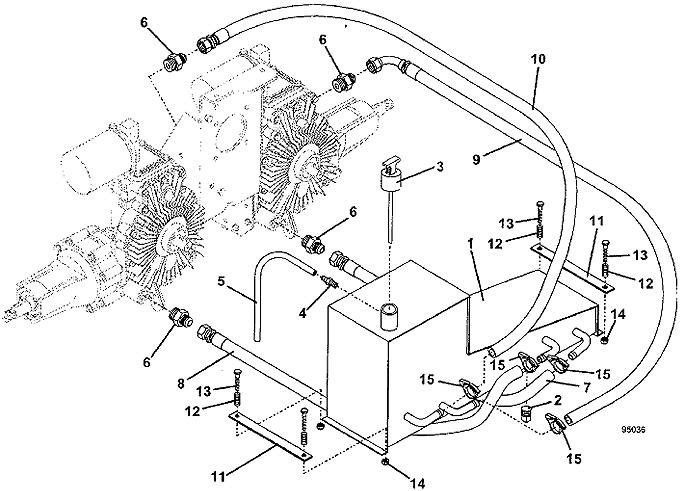

725 • Reservoir & Hose Assembly
1997
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Reservoir Assembly with Dipstick LC |
603711 |
2 |
3/8 inch Metal Pipe Plug |
365515 |
3 |
Plastic Oil Reservoir Dipstick |
100729 |
4 |
Straight Barbed Fitting |
363826 |
5 |
Clear Vent Hose |
821724 |
6 |
Steel O-Ring Flare Fitting |
363834 |
7 |
Hose Assembly |
424336 |
8 |
Hose Assembly |
424341 |
9 |
Hose Assembly |
424347 |
10 |
Hose Assembly |
424359 |
11 |
Reservoir Hold Down Bracket |
774084 |
12 |
Compression Spring |
283525 |
13 |
Hex Bolt |
243035 |
14 |
Nylon Insert Nut |
253440 |
15 |
Plastic Snap Hose Clamp |
280278 |
