Genuine OEM Grasshopper® Mower Parts Diagrams

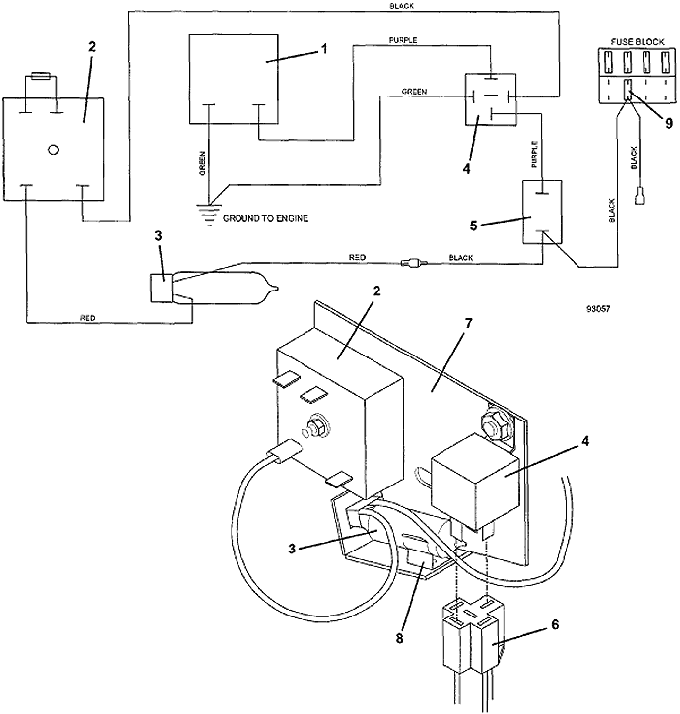

725 • Hydraulic Lift Wiring
1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Hydraulic Valve Solenoid |
144950 |
2 |
Deck Lift Timer Assembly |
604815 |
3 |
Mercury Switch |
183725 |
4 |
12 volt DC Relay with Mount |
184271 |
- |
Type 1 6mm Push-On |
184570 |
- |
.250 Fast-On Terminal |
184581 |
- |
5 Way Female Connector |
184926 |
5 |
Sealed Dome Switch |
183940 |
- |
Momentary Toggle |
183954 |
6 |
5 Way Female Connector |
184926 |
7 |
Tilt Switch Side Console Mount |
722121 |
8 |
Switch Mounting Clip |
183726 |
9 |
Auto ATC Fuse - 7.50 |
181460 |
