Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

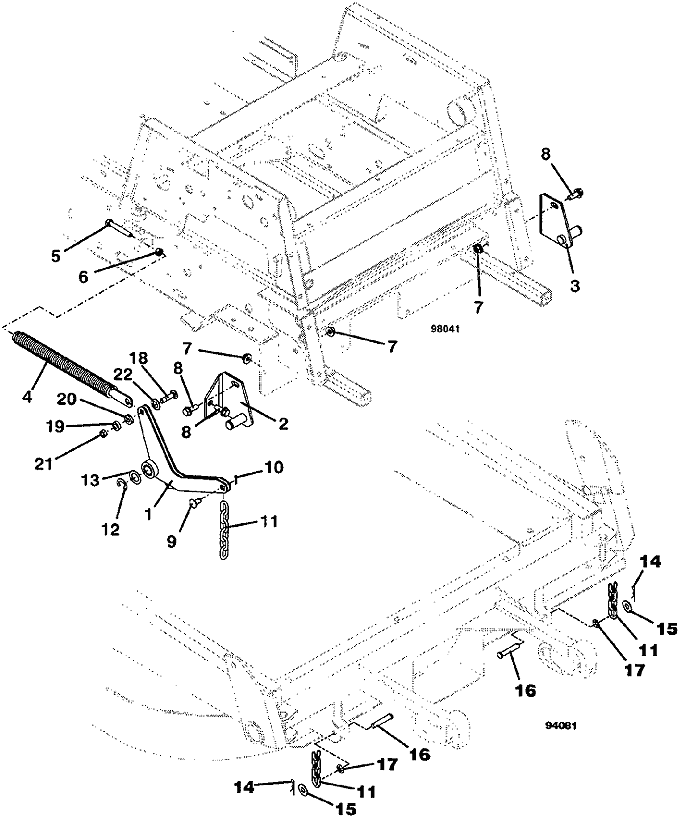

725 • Traction Kit

1999

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Rocker & Bearing Assembly

603715

-

Oilite Bearing

121766

2

right Rocker Pivot Mount

643611

3

left Rocker Pivot Mount

643612

4

Traction Kit Spring Assembly

605760

5

Hex Bolt

243361

6

Nut

254450

7

Whiz Nut

253043

8

Flange Whiz Bolt

253203

9

Clevis Pin

261336

10

Cotter Pin

260648

11

Lift Chain with 6 Links

820322

12

External Retainer

263529

13

18 GA Bushing Washer

257092

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin

261362

17

Push On Retainer

262950

18

Carriage Bolt

247254

19

.25 Traction Kit Spacer

881095

20

Spacer

901322

21

Lock Nut

253890

22

Washer

257062
