Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

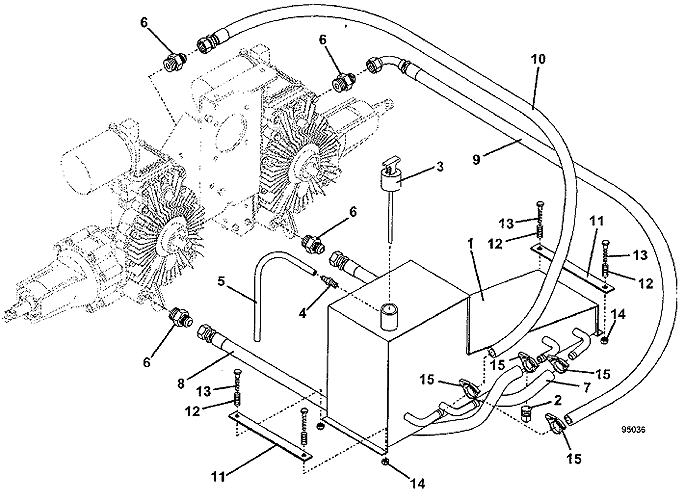

725 • Reservoir & Hose Assembly

2000

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Reservoir Assembly with Dipstick LC

603711

2

3/8 inch Metal Pipe Plug

365515

3

Plastic Oil Reservoir Dipstick

100729

4

Straight Barbed Fitting

363826

5

Clear Vent Hose

821724

6

Steel O-Ring Flare Fitting

363834

7

Hose Assembly

424336

8

Hose Assembly

424341

9

Hose Assembly

424347

10

Hose Assembly

424359

11

Reservoir Hold Down Bracket

774084

12

Compression Spring

283525

13

Hex Bolt

243035

14

Nylon Insert Nut

253440

15

Plastic Snap Hose Clamp

280278

return to 725 index return to top of page
