Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

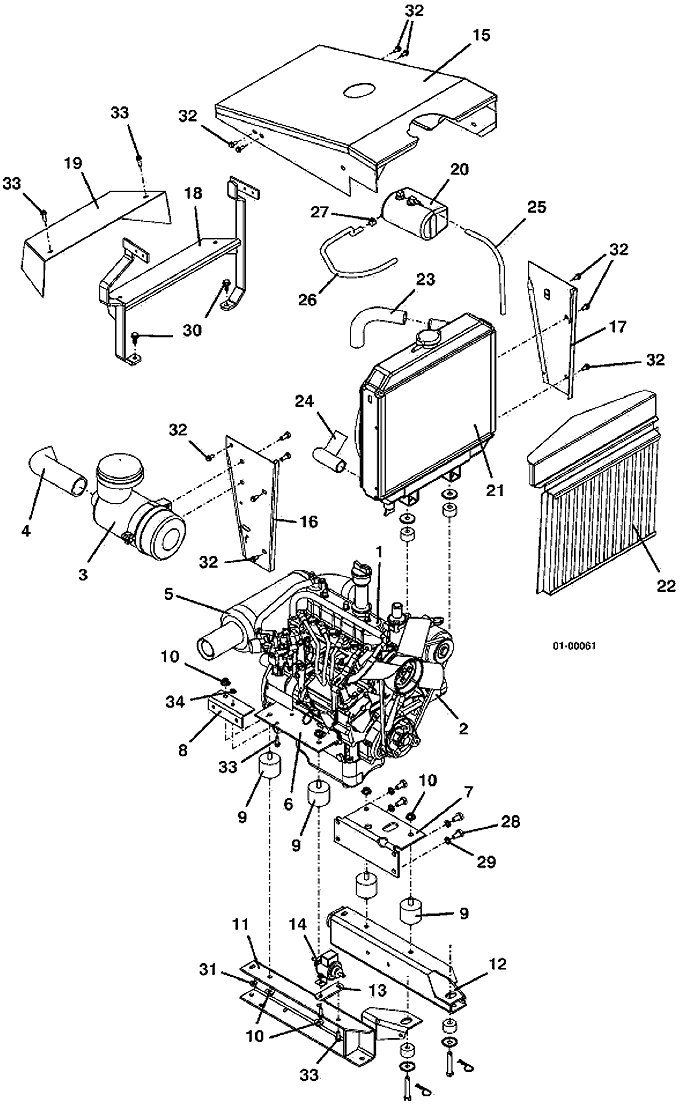

725 • Engine Assembly

2001

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100171

2

Kubota Oil Filter

100800

3

Kubota Air Filter

100940

4

Air Intake Hose

424519

5

Muffler & Gasket Assembly

603590

-

Kubota Exhaust Flange Gasket

101040

6

Upper right Engine Mount

643292

7

Upper left Engine Mount

643291

8

Coil Bracket

724091

9

Vibration Isolator

424078

10

Whiz Nut

253043

11

Lower right Engine Mount

643604

12

Lower left Engine Mount

643605

13

Fuel Pump Mount Plate

782529

14

Electric Fuel Pump

101510

15

700 Hood with Decals

693300

16

right Grille Support

643799

17

left Grille Support with Decal

693260

18

rear Hood Support

643797

19

Clutch Shield

643766

20

Expansion Tank

422012

21

Kubota Radiator

101610

22

Radiator Grille with Guard & Decal

693257

23

Upper Radiator Hose

101054

24

Lower Radiator Hose

101055

25

Clear Vent Hose

821748

26

Hose

821749

27

Spring Hose Clamp

280260

28

Hex Bolt

271120

29

Lock Washer

275580

30

Hex Flange Whiz Bolt

253192

31

Whiz Nut

253035

32

Hex Whiz Bolt

253173

33

Hex Whiz Bolt

253175

34

Whiz Nut

253025
