Genuine OEM Grasshopper® Mower Parts Diagrams

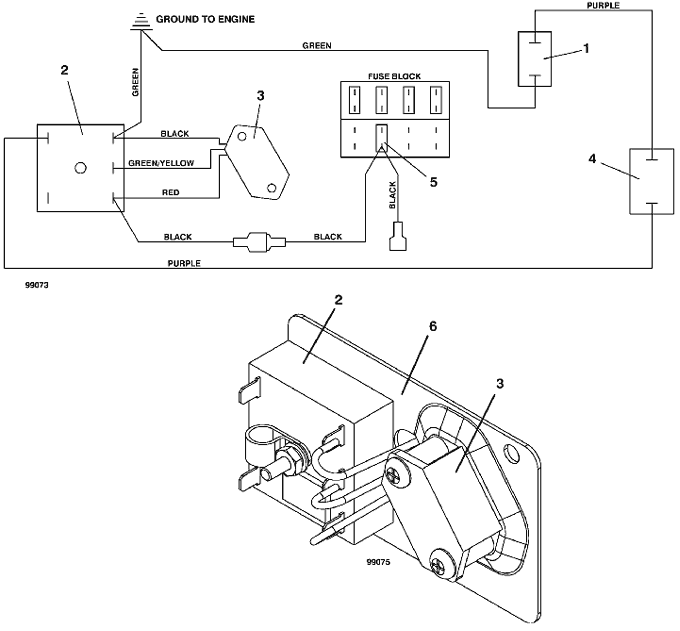

725 • Hydraulic Lift Wiring
2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Hydraulic Valve Solenoid |
144950 |
2 |
Delay Timer |
143374 |
3 |
Tilt Switch Assembly |
183700 |
4 |
8-Way Connector Mount |
184940 |
5 |
Auto ATC Fuse - 7.50 |
181460 |
6 |
Tilt Switch Magnetic Mount |
722080 |
