Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

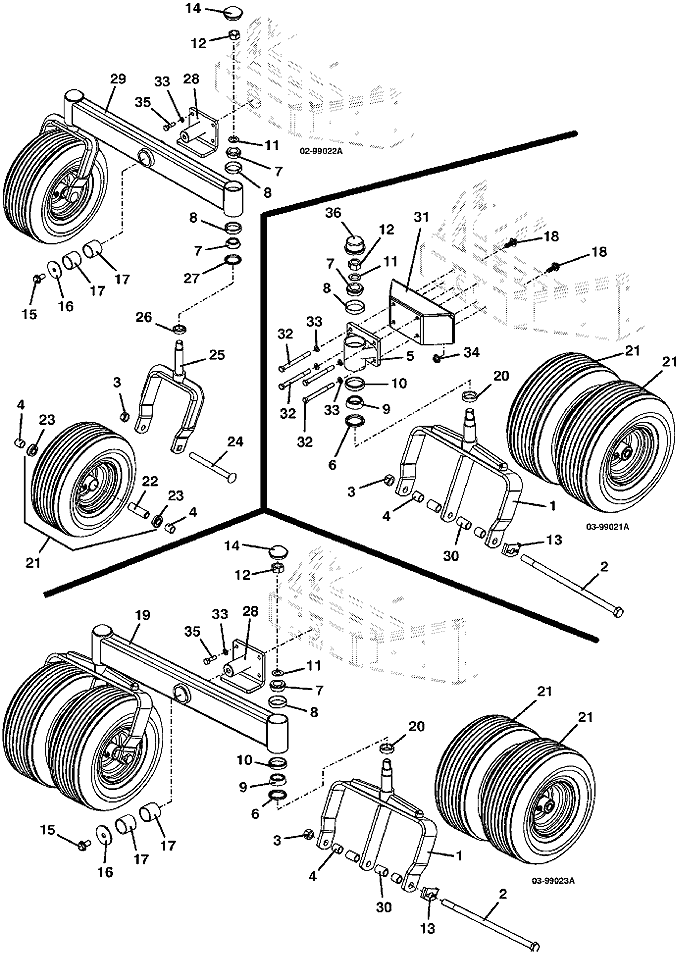

725 • Tail Wheel Options

2002

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604366

2

Hex Bolt

243922

3

Lock Nut

253970

4

Axle Spacer

902425

5

Dual Fork Pivot Housing Assembly

604595

6

Seal

125855

7

Tapered Bearing

122522

8

Bearing Cup

123522

9

Tapered Bearing

122523

10

Bearing Cup

123521

11

14 GA Bushing Washer

257091

12

Lock Nut

253992

13

Fork Bolt Lock

723008

14

Domed Dust Cap

481434

15

Whiz Bolt

253243

16

Washer

257061

17

Reamed Oilite Bearing

833275

18

Whiz Flange Bolt

253203

19

Dual Wheel Beam

824508

20

Spacer

830420

21

13 x 6.5 x 6 Wheel & Tire with Bearing & Spacer

483865

-

13 x 6.50 x 6 Ribbed Tire

482355

-

6 x 4.5 Tan Wheel without Bearings

483306

22

rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247725

25

Fork & Lock Nut Assembly

604365

26

Spacer

282615

27

Seal

125855

28

Rear Axle Pivot Assembly

604597

29

Dual Wheel Beam

824510

30

Dual-Wide Tire Spacer

902427

31

Pivot Mount Adapter

643015

32

Hex Bolt

243385

33

Lock Washer

257412

34

Whiz Nut

253043

35

GR 8 Hex Bolt

243334

36

Dust Cap

481432
