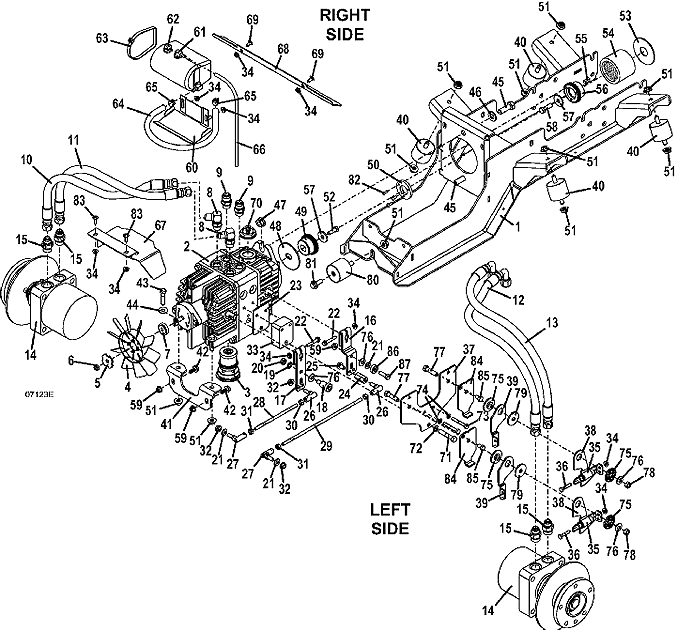

725DT6 • Drive Assembly
2010½ - units above serial #6064829
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Drive Train Mount |
644879 |
2 |
Parker 16cc Tandem Hydro |
391470 |
3 |
Tandem Transmission Filter |
130505 |
4 |
8.3" T6 Fan |
130434 |
5 |
Fan Retainer Washer |
130432 |
6 |
Nylon Insert Nut |
253461 |
7 |
Fan Hub |
130433 |
8 |
O-Ring Adapter |
360061 |
9 |
Fitting Adapter |
360064 |
10 |
Hose Assembly |
424383 |
11 |
Hose Assembly |
424384 |
12 |
Hose Assembly |
424385 |
13 |
Hose Assembly |
424386 |
14 |
T6 Wheel Motor with Hub |
603614 |
15 |
O-Ring Adapter |
360063 |
16 |
700T WC Bent Control Arm |
729662 |
17 |
600T/700T Control Arm |
729661 |
18 |
600T/700T Eccentric Roller Assembly |
603734 |
19 |
External Star Washer |
257410 |
20 |
Nut |
254450 |
21 |
Washer |
257032 |
22 |
Hex Whiz Bolt |
253182 |
23 |
700T Return Mount Spacer |
774296 |
24 |
Neutral Return Spacer |
783730 |
25 |
Hex Whiz Bolt |
253185 |
26 |
Righthand Thread Ball Joint |
265615 |
27 |
Lefthand Thread Ball Joint |
265616 |
28 |
Left/Right Steering Rod |
780169 |
29 |
Left/Right Steering Rod |
780172 |
30 |
Nut |
254441 |
31 |
Nut |
254444 |
32 |
Whiz Nut |
253038 |
33 |
Plastic Return Spacer |
422041 |
34 |
Whiz Nut |
253025 |
35 |
Extension Spring |
283823 |
36 |
Hex Bolt |
243035 |
37 |
600T/700T Neutral Return Mount |
774299 |
38 |
Return Arm |
729639 |
39 |
Neutral Return Arm |
729398 |
40 |
Vibration Isolator |
424073 |
41 |
Front Pump Mount |
725563 |
42 |
Hex Flange Whiz Bolt |
253192 |
43 |
Hex Bolt |
243340 |
44 |
Washer |
257040 |
45 |
Hex Bolt |
243570 |
46 |
Washer |
257062 |
47 |
Whiz Nut |
253066 |
48 |
DD Washer |
774175 |
49 |
Coupler Hub |
388577 |
50 |
Coupling Stabilizer |
424151 |
51 |
Whiz Nut |
253043 |
52 |
Hex Bolt |
243206 |
53 |
3" (outer dimension) Washer |
774176 |
54 |
Nylon Coupler Sleeve |
388560 |
55 |
Square Key |
281580 |
56 |
Flex Coupler with Holes |
831034 |
57 |
Washer |
774020 |
58 |
GR 8 Hex Bolt |
243337 |
59 |
Whiz Nut |
253035 |
60 |
Oil Reservoir W/A Bracket |
644094 |
61 |
Hydraulic Expansion Tank |
422033 |
62 |
3/8 inch Threaded Plastic Plug |
365516 |
63 |
Tie |
423154 |
64 |
Fuel Hose |
821730 |
65 |
Spring Hose Clamp |
280261 |
66 |
Clear Vent Hose |
821723 |
67 |
Fan Shroud |
722984 |
68 |
Coupler Shield |
722983 |
69 |
Truss Whiz Bolt |
253176 |
70 |
T2 Expansion Tank Adapter |
130510 |
- |
O-Ring |
126550 |
71 |
Hex Bolt |
243352 |
72 |
Lock Washer |
257412 |
73 |
Hex Bolt |
243040 |
74 |
Lock Washer |
257392 |
75 |
Neutral Return Pivot Bearing |
822304 |
76 |
Washer |
257030 |
77 |
Hex Bolt |
243340 |
78 |
Lock Nut |
253890 |
79 |
Washer |
774292 |
80 |
Vibration Isolator |
424071 |
81 |
Whiz Bolt |
253200 |
82 |
Truss Machine Screw |
250164 |
83 |
Philips Truss Whiz Bolt |
253179 |
84 |
600T/700T Return Adjustment Plate |
729660 |
85 |
Hex Bolt |
243186 |
86 |
Double Seal Ball Bearing |
120025 |
87 |
Hex Bolt |
243205 |
