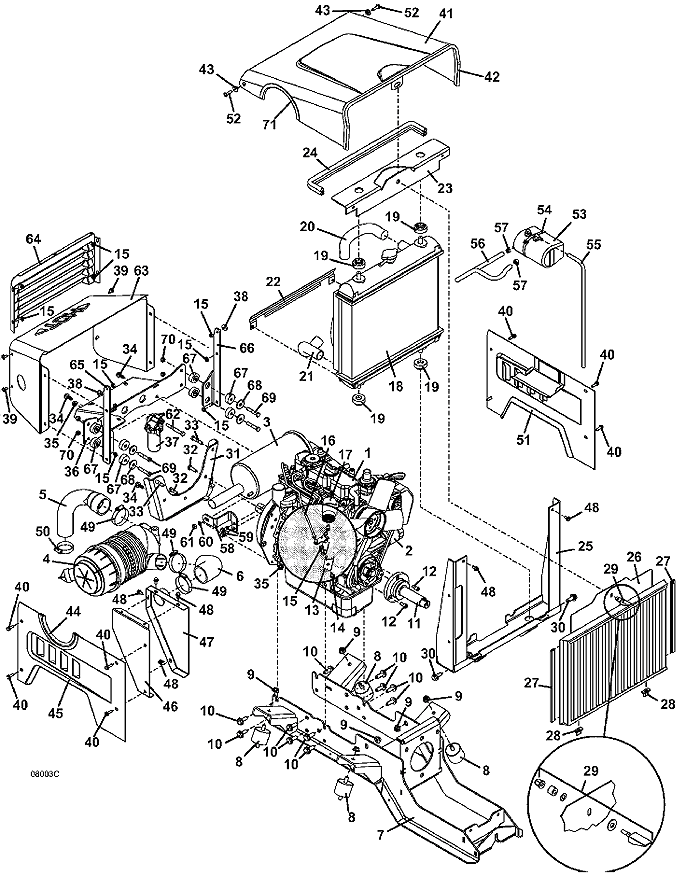

725DT6 • Engine Assembly
2010½
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Kubota Diesel Engine |
100179 |
2 |
Kubota Oil Filter |
100800 |
3 |
Kubota Muffler |
101235 |
- |
Kubota Exhaust Flange Gasket |
101040 |
4 |
Nelson 90 Degree Air Cleaner |
100207 |
- |
Clip for Air Cleaner Cover |
100197 |
- |
Air Cleaner Cover |
100199 |
- |
Dust Ejector |
100202 |
- |
Kohler Rain Cap |
100203 |
- |
Outer HD Air Filter |
100936 |
- |
Inner HD Air Filter |
100937 |
5 |
Breather / Manifold Hose |
424526 |
6 |
Breather Inlet Hose |
424520 |
7 |
Drive Train Mount |
644879 |
8 |
Vibration Isolator |
424073 |
9 |
Whiz Nut |
253043 |
10 |
Hex Bolt |
271121 |
11 |
Kubota Machined Front Shaft |
824412 |
12 |
M8 Socket Head Screw |
270075 |
13 |
Extension Linkage |
723063 |
14 |
Truss Whiz Bolt |
253176 |
15 |
Whiz Nut |
253025 |
16 |
Manual Stop Lever Extension |
246880 |
- |
Red Vinyl Cap |
422092 |
17 |
Fuel Valve Solenoid |
101046 |
18 |
Kubota 902 Radiator |
101612 |
19 |
Radiator Mount Isolator Bushing |
101080 |
20 |
Upper Radiator Hose |
101058 |
21 |
Lower Radiator Hose |
101059 |
22 |
Fan Shield |
721006 |
23 |
Radiator Channel Clamp |
729327 |
24 |
Hood Bulb Seal |
822518 |
25 |
700DT Lower Radiator Mount |
644655 |
26 |
902D Grille w/Guard |
644668 |
27 |
Radiator Grille Trim |
822636 |
28 |
Rear Belt Shield Isolator |
422090 |
29 |
Swell Latch Assembly |
604805 |
30 |
Flange Whiz Bolt |
253203 |
31 |
PTO / Idler Mount |
645566 |
32 |
Hex Head |
271023 |
33 |
Hex Head M8 Bolt |
271055 |
34 |
Hex Flange Whiz Bolt |
253192 |
35 |
Whiz Nut |
253035 |
36 |
700DT Rear Hood Support |
645851 |
37 |
Kubota Oil Filter |
101000 |
38 |
Hood Hinge Spacer |
901324 |
39 |
Bolt |
253180 |
40 |
Hex Whiz Bolt |
253175 |
41 |
725D/932 Engine Hood W/A |
644438 |
42 |
Front Hood Trim |
822639 |
43 |
Step Bushing |
422508 |
44 |
Air Cleaner Trim Seal |
822513 |
45 |
725DT6 Right Side Hood |
722920 |
46 |
Air Intake Box Mount |
644066 |
47 |
Air Intake Box |
644059 |
48 |
Hex Whiz Bolt |
253173 |
49 |
Screw Type Hose Clamp |
280305 |
50 |
Screw Type Hose Clamp |
280303 |
51 |
725DT6 Left Side Hood |
645311 |
52 |
Bolt |
253181 |
53 |
Expansion Tank |
422012 |
54 |
Tie |
423154 |
55 |
Clear Vent Hose |
821748 |
56 |
Hose |
821749 |
57 |
Spring Hose Clamp |
280260 |
58 |
Muffler Support Strap |
732604 |
59 |
Flange Hex Bolt w/Ser |
271021 |
60 |
Lock Washer |
257402 |
61 |
Hex Nut |
274145 |
62 |
Whiz Bolt |
253197 |
63 |
Rear Hood Box Panel |
722919 |
64 |
Rear Hood Grille |
645270 |
65 |
Right 700T Hood Support Upright |
725576 |
66 |
Left 700T Hood Support Upright |
725577 |
67 |
Rubber Step Bushing |
424005 |
68 |
Washer |
774020 |
69 |
Hex Bolt |
243220 |
70 |
Nut with Nylon Insert |
253450 |
71 |
Trim |
822632 |
