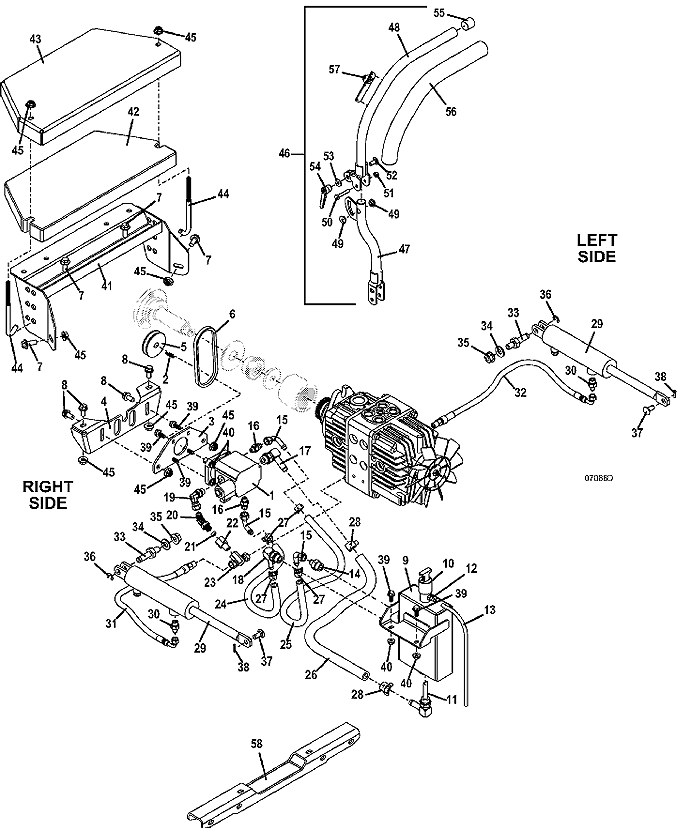

1

Counterclockwise Hydraulic Pump with Solenoid Valve

290074

-

Hydraulic Solenoid Valve

144950

2

Square Key

281540

3

700T WC Auxiliary Pump Mount Plate

775072

4

700T WC Auxiliary Hydraulic Pump Mount W/A

644865

5

Sheave

831433

6

Belt

381400

7

Flange Whiz Bolt

253203

8

Whiz Bolt

253200

-

Square Key

281575

9

Auxiliary Oil Tank

644845

10

M1 Oil Reservoir Dipstick

100728

11

Fitting with Strainer

603330

12

Straight Barbed Fitting

363826

13

Clear Vent Hose

821723

14

O-Ring Flare Fitting Adapter

360080

15

Fitting

363846

16

Adapter

360053

17

Adapter

360082

18

Adapter

360062

19

O-Ring Adapter

360044

20

O-Ring Adapter

360043

21

Flow Restrictor

780507

22

O-Ring Adapter

360045

23

Swivel Tee Adapter

360005

24

Hydraulic Hose

821787

25

Hydraulic Hose

821773

26

Hydraulic Hose

821800

27

Spring Hose Clamp

280264

28

Spring Hose Clamp

280266

29

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder Head Seal Kit

290096

30

O-Ring Adapter

360052

31

Hose Assembly

424540

32

Hose Assembly

424545

33

Cylinder Mount Pin with Groove

887119

34

Washer

257062

35

Whiz Nut

253066

36

External Retainer

263500

37

Clevis Pin

261339

38

Cotter Pin

260648

39

Hex Flange Whiz Bolt

253192

40

Whiz Nut

253035

41

700/900 Weight Mount

644915

42

750 Counterweight

323951

43

50 lb. Weight Cover

729691

44

Hook Bolt

240151

45

Whiz Nut

253043

46

Right Steering Lever Assembly with Switch - Std Adjustment
(includes items 47 through 57)

603804

47

Lower Right Fldg Steering Lever with Lift

824579

48

Upper Right Std Adjustable Steering Lever

824577

49

Step Bushing

422508

50

Hex Bolt

243035

51

Lock Nut

253850

52

Carriage Bolt

247130

53

Flat Washer

257019

54

Adjustable Lever Nut

254438

55

.75 inch ID Vinyl Cap

422095

56

Handle Grip

422179

57

Hydraulic Lift Switch/Mount Assembly

604799

58

700 Water Cooled Model Hydraulic Lift Center Crossmember

645204
