Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

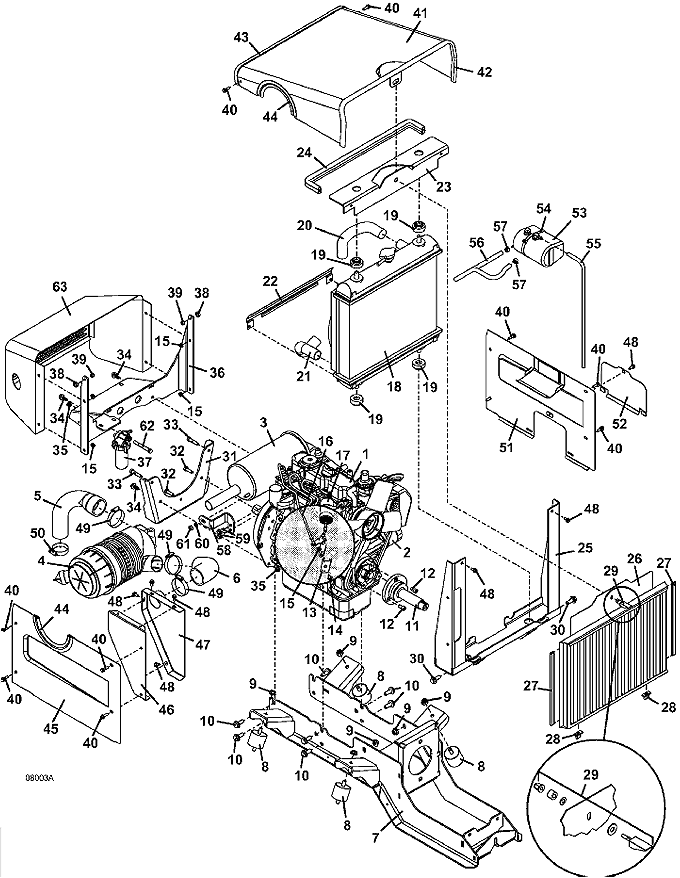

725DT6 • Engine Assembly

2010

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100179

2

Kubota Oil Filter

100800

3

Kubota Muffler

101235

-

Kubota Exhaust Flange Gasket

101040

4

Nelson 90 Degree Air Cleaner

100207

-

Clip for Air Cleaner Cover

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Kohler Rain Cap

100203

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

5

Breather / Manifold Hose

424526

6

Breather Inlet Hose

424520

7

Drive Train Mount

644879

8

Vibration Isolator

424073

9

Whiz Nut

253043

10

Hex Bolt

271121

11

Kubota Machined Front Shaft

824412

12

M8 Socket Head Screw

270075

13

Extension Linkage

723063

14

Truss Whiz Bolt

253176

15

Whiz Nut

253025

16

Manual Stop Lever Extension

246880

-

Red Vinyl Cap

422092

17

Fuel Valve Solenoid

101046

18

Kubota 902 Radiator

101612

19

Radiator Mount Isolator Bushing

101080

20

Upper Radiator Hose

101058

21

Lower Radiator Hose

101059

22

Fan Shield

721006

23

Radiator Channel Clamp

729327

24

Hood Bulb Seal

822518

25

700DT Lower Radiator Mount

644655

26

902D Grille w/Guard

644668

27

Radiator Grille Trim

822636

28

Rear Belt Shield Isolator

422090

29

Swell Latch Assembly

604805

30

Flange Whiz Bolt

253203

31

722D Upper Hood

644863

32

Hex Head

271023

33

Hex Head M8 Bolt

271055

34

Hex Flange Whiz Bolt

253192

35

Whiz Nut

253035

36

700DT Rear Hood Support

644851

37

Kubota Oil Filter

101000

38

.25 THK Spacer

902297

39

Lock Nut

253850

40

Hex Whiz Bolt

253175

41

722D Upper Hood

644293

42

Front Hood Trim

822639

43

Rear Hood Trim

822637

44

Air Cleaner Trim Seal

822513

45

Right Side Hood

722712

46

Air Intake Box Mount

644066

47

Air Intake Box

644059

48

Hex Whiz Bolt

253173

49

Screw Type Hose Clamp

280305

50

Screw Type Hose Clamp

280303

51

722D W/A Left Side Hood

644322

52

Oil filter Cover

722722

53

Expansion Tank

422012

54

Tie

423154

55

Clear Vent Hose

821748

56

Hose

821749

57

Spring Hose Clamp

280260

58

Muffler Support Strap

732604

59

Flange Hex Bolt w/Ser

271021

60

Lock Washer

257402

61

Hex Nut

274145

62

Whiz Bolt

253197

63

Rear Hood

645307
