Genuine OEM Grasshopper® Mower Parts Diagrams

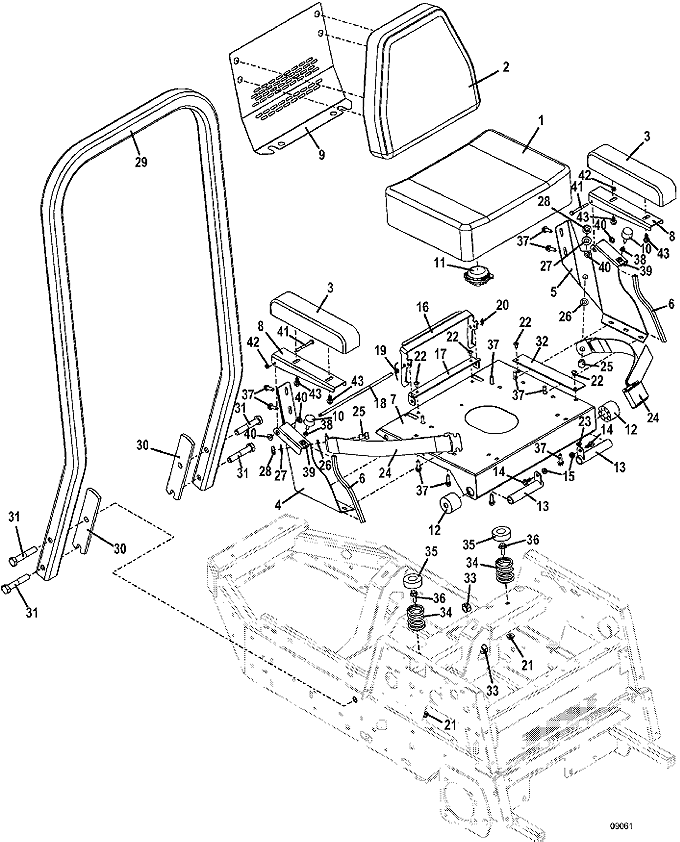

725DT6 • Seat & ROPS Assembly
2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Cordura Seat Cushion |
321518 |
2 |
Cordura Back Cushion with Logo |
321520 |
3 |
Contoured Cordura Arm Rest |
321523 |
4 |
right Seat Side with Mount for Folding Armrest |
723435 |
5 |
left Seat Side with Mount for Folding Armrest |
723436 |
6 |
Seat Edge Trim |
822630 |
7 |
Dual Latch Seat Mount |
644816 |
8 |
Folding Arm Rest |
754288 |
9 |
Raised Backrest Seat Rein |
722884 |
10 |
Bumper with Stud |
424056 |
11 |
Twist-In Seat Switch |
183871 |
12 |
Seat Isolator |
424095 |
13 |
Seat Hinge Pin |
644618 |
14 |
Hex Flange Whiz Bolt |
253192 |
15 |
Whiz Nut |
253035 |
16 |
Seat Dual Latch |
754240 |
17 |
Dual Latch Mount Bracket |
754226 |
18 |
Seat Latch Pivot Pin |
730230 |
19 |
Torsion Spring |
284408 |
20 |
Cotter Ring |
260606 |
21 |
Whiz Nut |
253043 |
22 |
Truss Whiz Bolt |
253176 |
23 |
Whiz Nut |
253025 |
24 |
Non Retracting Seat Belt |
324200 |
25 |
Hex Bolt |
243551 |
26 |
Washer |
257063 |
27 |
Washer |
257062 |
28 |
Nylon Insert Nut |
253470 |
29 |
700/900 ROPS Tube |
324103 |
30 |
700/900 ROPS Spacer |
901645 |
31 |
Hex Bolt |
243840 |
32 |
700/900 Seat Panel Flap |
424176 |
33 |
Lock Nut |
253970 |
34 |
Compression Spring |
283516 |
35 |
Seat Spring Cap |
422127 |
36 |
Whiz Flange Bolt |
253203 |
37 |
Hex Flange Whiz Bolt |
253193 |
38 |
Bumper Nut Cap |
833542 |
39 |
Speed Nut |
830325 |
40 |
Step Bushing |
422508 |
41 |
Hex Bolt |
243050 |
42 |
Nylon Insert Nut |
253440 |
43 |
Hex Flange Whiz Bolt |
253191 |
