725K2

Year Model:2002

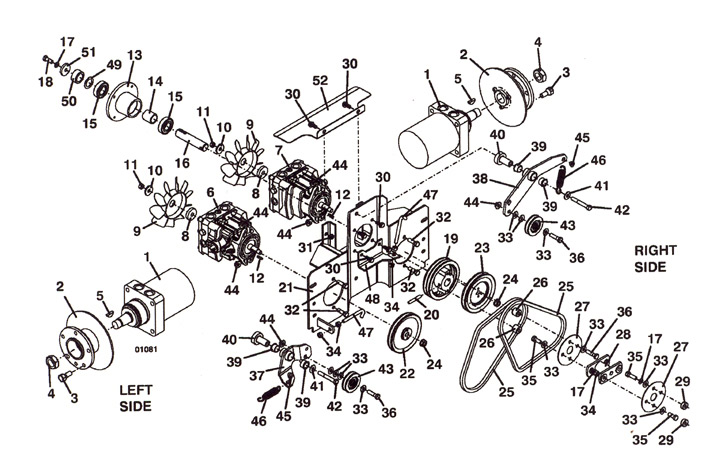

Drive Assembly

Wiring Diagram
Click On The Part Number For Details

Item #

Description

Part Number

1

Wheel Motor

603602

2

Hub - Tapered w/Rotor

604440

3

Lug

248565

4

Jam Nut

254522

5

Woodruff Key

281860

6

Hydro Pump - Left

391462

-

Seal - Fan Shaft

125165

-

Charge Cover Seal Ring - Square

130020

7

Hydro Pump - Right

391463

-

Seal - Fan Shaft

125165

-

Charge Cover Seal Ring - Square

130020

8

Tapered Hub - Fan Mount

885123

9

Nylon Fan

320857

10

Washer

774020

11

Nut

254452

12

Key

281562

13

Spindle Housing

320522

14

Spacer

903650

15

Bearing

110081

16

Drive Shaft

882052

17

Lock Washer

257412

18

Bolt

243331

19

Sheave

415037

20

Spiral Roll Pin

261061

21

Pump Mount

644629

22

Sheave

415022

23

Sheave

415021

24

Flange Nut

253060

25

Belt

381537

26

Spacer

902328

27

Disc - Flex Coupling

821530

28

Coupling Connector

644092

29

Coupling Spacer

902318

30

Bolt

253192

31

Nut

253035

32

Bolt

243335

33

Washer

257030

34

Nut

254450

35

Bolt

243330

36

Bolt

243340

37

Idler Arm Assembly (Includes 39&40)

824491

38

Idler Arm Assembly (Includes 39&40)

824490

39

Oilite Bearing - Flange

121756

40

Bearing Pedastal

121650

41

Washer

257040

42

Bolt

243360

43

Idler Pulley

604446

44

Whiz Nut

253043

45

Nylon Bearing

422520

46

Extension Spring w/Swivel

283819

47

Idler Adjustment Bolt

730391

48

Bracket Spring

725028

49

Washer

257106

50

Spacer

282630

51

Retainer Washer

883801

52

Fan Shield

723154
