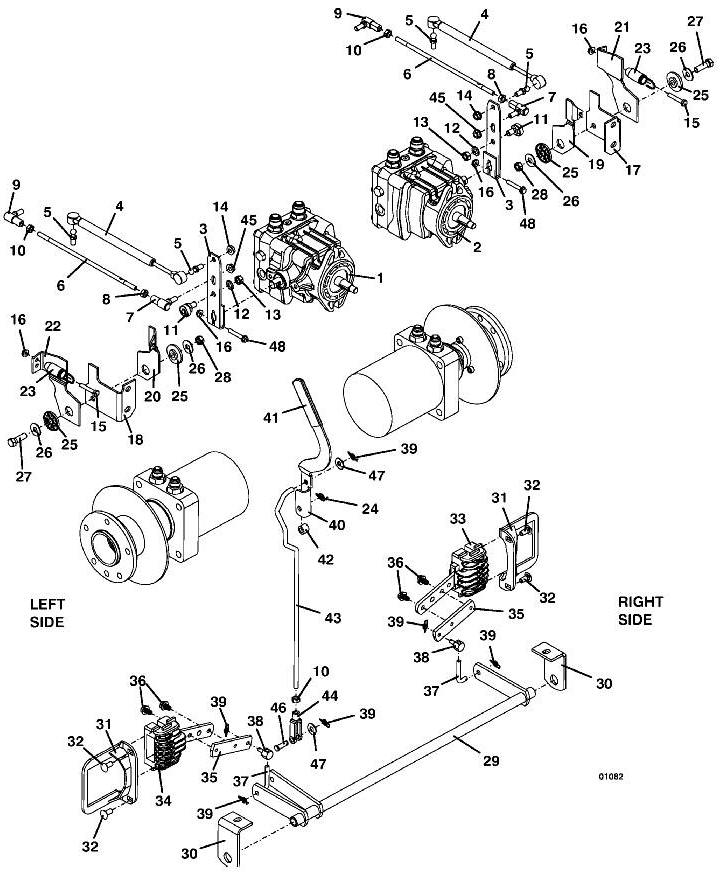

Item # |
Description |
Part Number |
1 |
Hydro Pump - Left |
391462 |
- |
Seal |
125165 |
- |
Charge Cover Seal Ring |
130020 |
2 |
Hydro Pump - Right |
391463 |
- |
Seal |
125165 |
- |
Charge Cover Seal Ring |
130020 |
3 |
Control Arm |
725338 |
4 |
Damper |
285031 |
5 |
Ball Stud |
265680 |
6 |
Steering Linkage Pump Rod |
780164 |
7 |
Ball Joint |
265616 |
8 |
Nut |
254444 |
9 |
Ball Joint |
265615 |
10 |
Nut |
254441 |
11 |
Eccentric Roller Assembly |
603726 |
12 |
Washer |
257410 |
13 |
Nut |
254450 |
14 |
Nut |
253035 |
15 |
Bolt |
243035 |
16 |
Nut |
253025 |
17 |
Neutral Return Mount - Right |
754120 |
18 |
Neutral Return Mount - Left |
754121 |
19 |
Neutral Return Arm - Right |
729138 |
20 |
Neutral Return Arm - Left |
729139 |
21 |
Front Neutral Return Arm - Right |
729136 |
22 |
Front Neutral Return Arm - Left |
729137 |
23 |
Extension Spring |
283823 |
24 |
Cotter Ring |
260608 |
25 |
Neutral Return Pivot Bearing |
822304 |
26 |
Washer |
257040 |
27 |
Bolt |
243335 |
28 |
Nut |
253890 |
29 |
Linkage Rod |
644521 |
30 |
Brake Pivot Mount Bracket |
732610 |
31 |
Caliper Mount |
644121 |
32 |
Carriage Bolt |
247130 |
33 |
Brake Assembly - Right Side |
481100 |
- |
Brake Pad Kit |
603150 |
34 |
Brake Assembly - Left Side |
481101 |
- |
Brake Pad Kit |
603150 |
35 |
Brake Linkage |
782864 |
36 |
Bolt |
253189 |
37 |
Rod |
730155 |
38 |
Pin |
880924 |
39 |
Cotter Ring |
260606 |
40 |
Brake Lever |
754045 |
41 |
Handle Grip |
422150 |
42 |
Spacer |
423705 |
43 |
Rod |
730361 |
44 |
Clevis Yoke |
265537 |
45 |
Nut |
253038 |
46 |
Clevis Pin |
261284 |
47 |
Washer |
257030 |
48 |
Bolt |
253182 |
