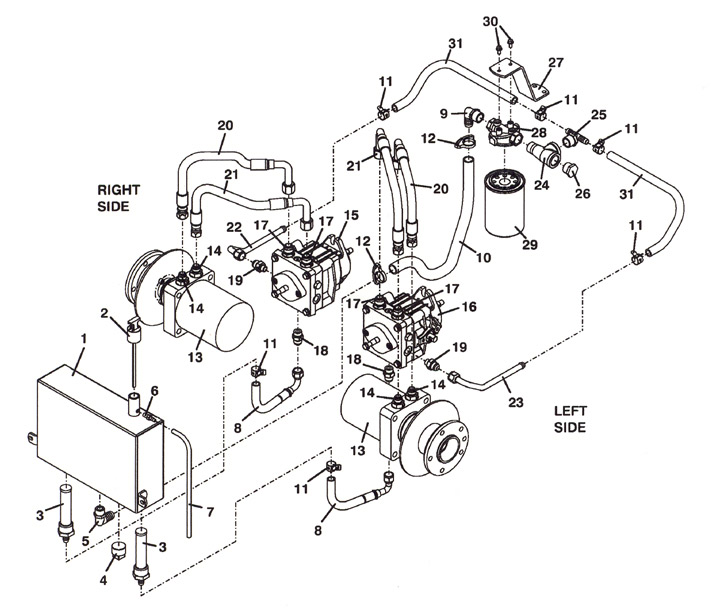

Item # |
Description |
Part Number |
1 |
Reservoir Assembly (Includes 2-6) |
603703 |
2 |
Dipstick - Plastic |
100729 |
3 |
Tank Filter |
366556 |
4 |
Plug |
365535 |
5 |
Nylon Fitting |
363853 |
6 |
Straight Barb Fitting |
363826 |
7 |
Clear Vent Hose |
821724 |
8 |
Hose Assembly |
424331 |
9 |
Fitting |
363880 |
10 |
Hydraulic Hose |
821804 |
11 |
Hose Clamp |
280265 |
12 |
Plastic Hose Clamp |
280281 |
13 |
Wheel Motor |
603602 |
14 |
Adapter Fitting |
360063 |
- |
O Ring (Tube Side) |
126527 |
- |
O Ring (Wheel Motor Side) |
126537 |
15 |
Hydro Pump - Right |
391463 |
- |
Seal - Fan Shaft |
125165 |
- |
Charge Cover Seal Ring - Square |
130020 |
16 |
Hydro Pump - Left |
391462 |
- |
Seal - Fan Shaft |
126165 |
- |
Charge Cover Seal Ring - Square |
130020 |
17 |
Adapter Fitting |
360064 |
- |
O Ring (Tube Side) |
126529 |
- |
O Ring (Hydro Pump Side) |
126535 |
18 |
Adapter Fitting |
363832 |
19 |
Adapter Fitting |
360081 |
20 |
Hose Assembly |
424371 |
21 |
Hose Assembly |
424372 |
22 |
Hose Assembly |
603406 |
23 |
Hose Assembly |
603407 |
24 |
Tee |
266826 |
25 |
Nylon Tee |
363860 |
26 |
Plug |
365527 |
27 |
Filter Mount |
733124 |
28 |
Filter Base |
101026 |
29 |
Oil Filter |
100860 |
30 |
Bolt |
253173 |
30 |
Hydraulic Hose |
821799 |
