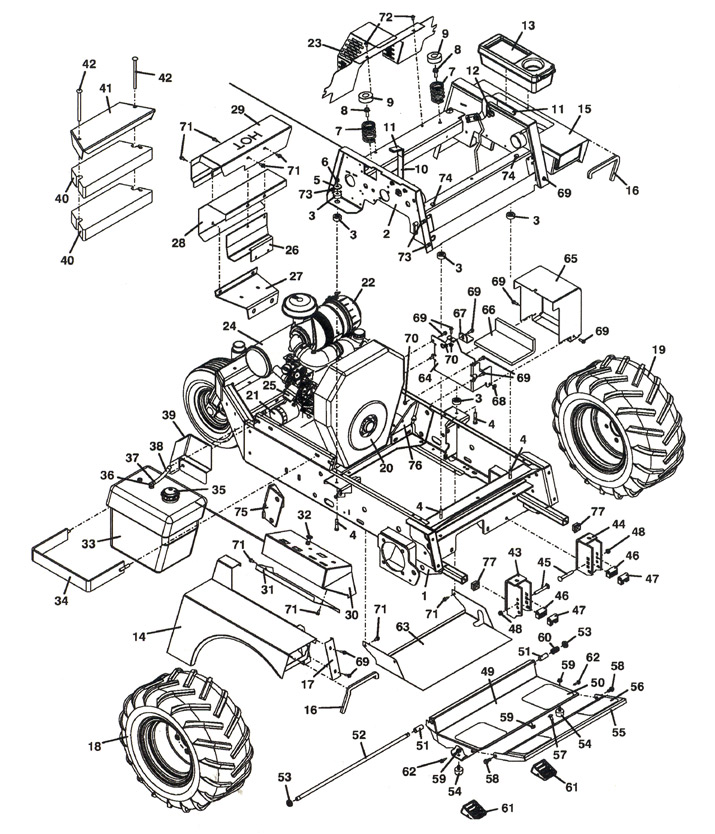

Item # |
Description |
Part Number |
1 |
Tractor Frame - Lower |
644234 |
2 |
Tractor Frame - Upper |
643871 |
3 |
Rubber Step Bushing |
257037 |
4 |
Bolt |
243220 |
5 |
Washer |
774020 |
6 |
Nut - Nylon Insert |
253450 |
7 |
Seat Spring |
283516 |
8 |
Whiz Bolt |
253203 |
9 |
Seat Spring Cap |
422127 |
10 |
Throttle Assembly (Incl. Cable Assy) |
603821 |
- |
Cable Assembly |
323655 |
- |
Throttle Lever Stop |
722009 |
11 |
Handle Grip |
422150 |
12 |
Spacer |
902280 |
- |
Bolt |
243330 |
- |
Washer |
257040 |
13 |
Tool Box |
422040 |
14 |
Fender w/Deal - Right |
693210 |
15 |
Fender w/Decal - Left |
693211 |
16 |
Fender Edge Trim |
822635 |
17 |
Fender Cover Panel - Right |
722062 |
18 |
Wheel & Tire - Right - Bar Tread 21x11x10 |
483940 |
19 |
Wheel & Tire - Left - Bar Tread 21x11x10 |
483941 |
- |
Wheel Only - For Bar Tread- 10.00 |
483420 |
- |
Tire Only - Bar Tread - 21x11x10 |
482484 |
- |
Wheel & Tire - Turf - 20 x 10 x 10 |
483924 |
- |
Tire - Turf - 20 x 10 x 10 |
482474 |
20 |
Engine - 25HP Kohler |
100168 |
21 |
Engine Oil Filter |
100802 |
22 |
Air Filter - Outer Element |
100936 |
- |
Air Filter - Inner Element |
100937 |
23 |
Coupler Shield |
644291 |
24 |
Kohler Muffler |
101217 |
- |
Exhaust Gasket |
101041 |
25 |
Fuel Filter |
101001 |
26 |
Shield Mount Bracket |
643117 |
27 |
Lower Muffler Bracket |
729270 |
28 |
Inner Panel |
722309 |
29 |
Muffler Shield |
722391 |
30 |
Console w/Decal |
693100 |
31 |
Console Fill Panel |
721152 |
32 |
Mechanical Choke |
142233 |
33 |
Fuel Tank w/Draw Tube |
603813 |
34 |
Fuel Tank Mounting Bracket |
643144 |
35 |
Fuel Cap w/Level |
141125 |
36 |
Fuel Draw Tube |
101819 |
37 |
Spring Clamp |
280260 |
38 |
Fuel Hose |
821710 |
39 |
Fuel Tank Heat Shield |
721123 |
40 |
Counterweight - 34 lbs. |
323933 |
41 |
Weight Cover Plate |
729514 |
42 |
Bolt |
247325 |
43 |
Deck Mount - Right |
643092 |
44 |
Deck Mount - Left |
643093 |
45 |
Bolt |
247280 |
46 |
Deck Mount Bushing |
282575 |
47 |
Deck Mount Bushing - Floating Option |
282576 |
48 |
Nut w/Nylon Insert |
253460 |
49 |
Foot Platform Assembly |
604346 |
50 |
Foot Rest Tread |
420905 |
51 |
Nylon Bearing |
422615 |
52 |
Pivot Rod |
780673 |
53 |
Nut w/Nylon Insert |
253470 |
54 |
Rubber Bumper |
424052 |
55 |
Foot Platform Extension |
603301 |
56 |
Foot Rest Tread |
420904 |
57 |
Bolt |
247130 |
58 |
Bolt |
253192 |
59 |
Nut |
253035 |
60 |
Compression Spring |
283312 |
61 |
Isolator Block |
424100 |
62 |
Bolt |
243026 |
63 |
Trash Shield |
721383 |
64 |
Battery Box |
644099 |
65 |
Battery Cover |
644162 |
66 |
Battery Tray Pad |
427273 |
67 |
Battery Clamp |
729001 |
68 |
Washer |
257020 |
69 |
Bolt |
253174 |
70 |
Nut |
253025 |
71 |
Nut |
253173 |
72 |
Bolt |
253176 |
73 |
Nut |
254431 |
74 |
Rubber Bumper |
424015 |
75 |
Gusset - Right |
726131 |
76 |
Gusset - Left |
726132 |
77 |
Plug |
422065 |
- |
Decal Set - 725K2 |
604296 |
