grasshopper

725K2

Year Model:2003

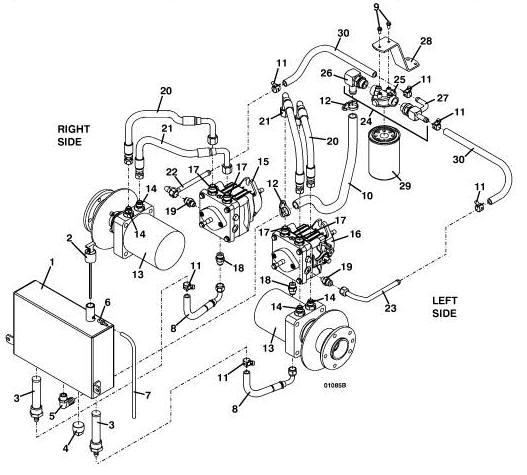

Reservoir & Hose Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1 RESERVOIR ASSY - 01 - 700G2 603703
2 DIPSTICK - OIL RES PLASTIC 100729
3 STRAINER 366556
4 PLUG 365535
5 FITTING - NYLON 363853
6 FITTING - BARB STRAIGHT 363826
7 HOSE - VENT CLEAR 821724
8 HOSE ASSY 424331
9 BOLT WHIZ HEX 253173
10 HOSE .75 HYDRAULIC 821804
11 CLAMP - HOSE SPRING 280265
12 CLAMP - HOSE - PLASTIC SNAP 280281
13 WHEEL MOTOR W/HUB 603602
14 ADAPTER O-RING 360063
  O-RING 126527
  O-RING 126537
15 HYDRO PUMP - RT 391463
  SEAL 125165
  SEAL RING - CHARGE COVER SQUARE 130020
16 HYDRO PUMP - LT 391462
  SEAL 125165
  SEAL RING - CHARGE COVER SQUARE 130020
17 ADAPTER FITTING 360064
  O-RING 126529
  O-RING 126535
18 FITTING STEEL O-RING BOSS 363832
19 ADAPTER FITTING 360081
20 HOSE ASSY 424371
21 HOSE ASSY 424372
22 TUBE ASSY 424602
23 TUBE ASSY 424603
24 FILTER BASE ASSY G2 101020
25 BASE - FILTER 101027
26 ADAPTER O-RING 12 BEAD 360076
27 ADAPTER O-RING W/90 ELBOW 360074
28 BASE - OIL FILTER 733124
29 FILTER - OIL TRANSMISSION 100860
30 HOSE - HYDRAULIC 821799
