grasshopper

725K2

Year Model:2003

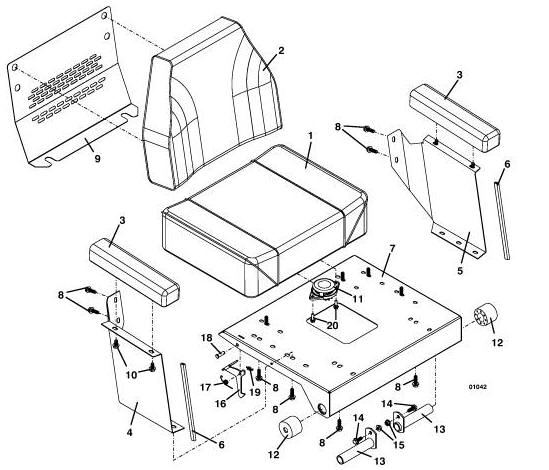

Seat


Click On The Part Number For Details

Item #

Description

Part Number

1 SEAT CUSHION FORMED - CORUDRA 321521
2 BACK CUSHION - CORDURA 321519
3 SEAT - ARMREST - CORDURA 321522
4 MEMBER - SIDE SEAT - RT 724310
5 MEMBER - SIDE SEAT - LT 724311
6 TRIM - SEAT EDGE 822630
7 SEAT ISO W/A 643912
8 BOLT WHIZ HEX FLANGE 253193
9 PANEL - SEAT REINFORCEMENT 722388
10 BOLT WHIZ HEX FLANGE 253191
11 SWITCH - SEAT 183870
12 ISOLATOR - SEAT 424095
13 PIN -SEAT - HINGE 644618
14 BOLT WHIZ HEX FLANGE 253192
15 NUT WHIZ 253035
16 LATCH SEAT 724112
17 SPRING TORSION 284408
18 CLEVIS PIN 261280
19 RING COTTER 260606
20 BOLT WHIZ HEX 253175
21 SEAT ASSY - 700 CORDURA W/LOGO` 604741
