grasshopper

725K2

Year Model:2003

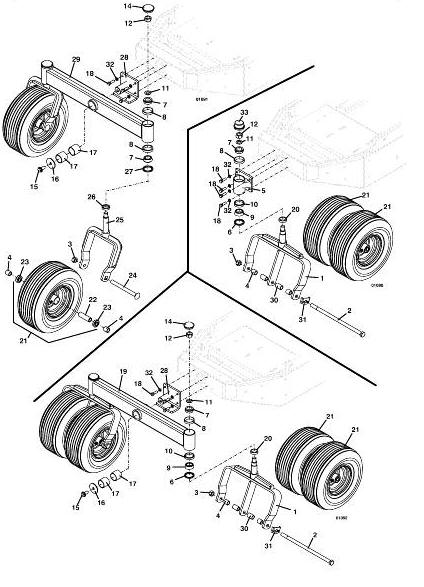

Tail Wheel Options


Click On The Part Number For Details

Item #

Description

Part Number

1 FORK & LOCK NUT ASSY - DUAL 604366
2 HEX BOLT 243922
3 NUT LOCK 253970
4 SPACER AXEL 902425
5 PIVOT HOUSING ASSY - DUAL FORK 604595
6 SEAL 125855
7 BEARING - TAPER 122522
8 BEARING CUP 123522
9 BEARING TAPER 122523
10 BEARING CUP 123521
11 WASHER 14 GA BUSHING 257091
12 NUT LOCK 253992
14 DUST CAP DOMED 481434
15 BOLT WHIZ 253243
16 WASHER 257061
17 BEARING - REAMED OILITE 833275
18 HEX BOLT GR 8 243334
19 BEAM - WIDE DUAL 824508
20 SPACER 830420
21 WHEEL & TIRE W/BRG & SPCR 6 483865
  TIRE RIB 6 482355
  WHEEL 6 TAN 483306
22 SPACER - REAR WHEEL BEARING 902475
23 BEARING BALL 120050
24 CARRIAGE BOLT 247725
25 FORK & LK NUT ASSY 604365
26 SPACER 282615
27 SEAL 125855
28 REAR AXEL PIVOT ASSY 604597
29 BEAM DUAL WHEEL 824510
30 SPACER - DUAL WIDE TIRE 902427
31 LOCK - FORK BOLT 723008
32 WASHER LOCK 257412
33 CAP - DUST 481432
