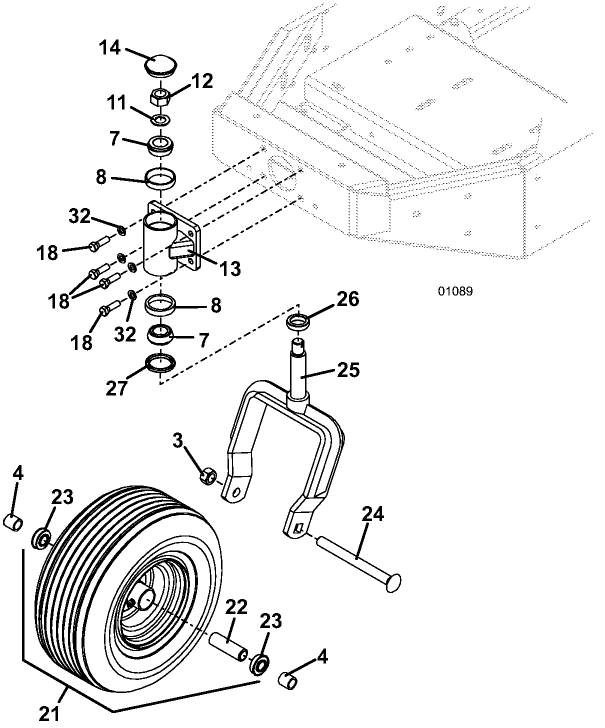

Item # |
Description |
Part Number |
3 |
Lock Nut |
253970 |
4 |
Axle Spacer |
902425 |
7 |
Taper Bearing |
122522 |
8 |
Bearing Cup |
123522 |
11 |
14 ga Bushing Washer |
257091 |
12 |
Lock Nut |
253992 |
13 |
RR Fork Pivot Housing |
604596 |
14 |
Domed Dust Cap |
481434 |
18 |
GR8 Hex Bolt |
243334 |
21 |
Wheel & Tire w/Bearing & Spacer |
483865 |
22 |
Rear Wheel Bearing Spacer |
902475 |
23 |
Ball Bearing |
120050 |
24 |
Carriage Bolt |
247725 |
25 |
Fork & Lock Nut Assembly |
604365 |
26 |
Spacer |
282615 |
27 |
Seal |
125855 |
32 |
Lock Washer |
257412 |
