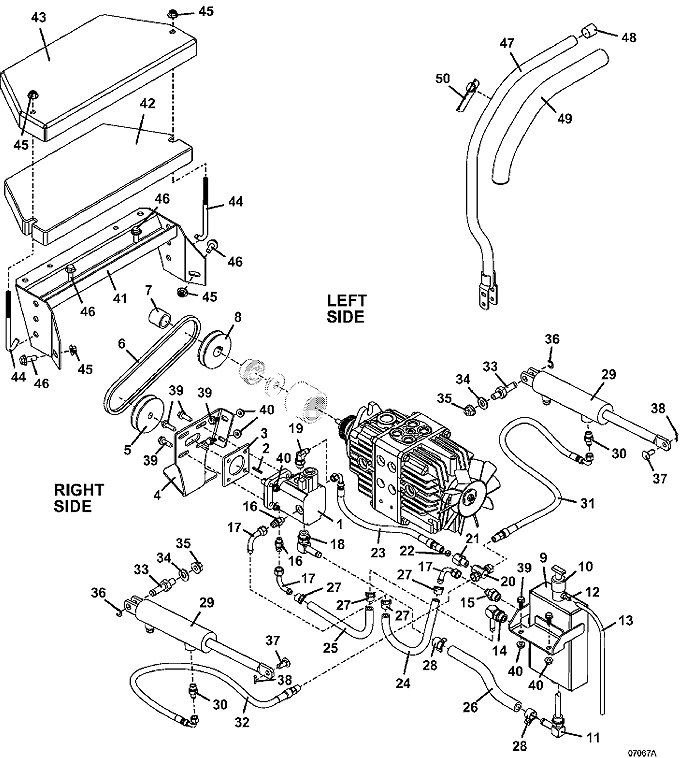

727T6 • Hydraulic Lift Assembly
2008
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Counterclockwise Hydraulic Pump with Solenoid Valve |
290074 |
- |
Hydraulic Solenoid Valve |
144950 |
2 |
Square Key |
281540 |
3 |
Hydraulic Pump Spacer |
775049 |
4 |
Hydraulic Pump Mount |
725504 |
5 |
Hydraulic Pump Sheave |
831436 |
6 |
Belt |
381886 |
7 |
Spacer |
902546 |
8 |
Sheave |
831443 |
- |
Square Key |
281575 |
9 |
Auxiliary Oil Tank |
644845 |
10 |
M1 Oil Reservoir Dipstick |
100728 |
11 |
Fitting with Strainer |
603330 |
12 |
Straight Barbed Fitting |
363826 |
13 |
Clear Vent Hose |
821724 |
14 |
Adapter |
360062 |
15 |
O-Ring Flare Fitting Adapter |
360080 |
16 |
Adapter |
360053 |
17 |
Fitting |
363846 |
18 |
Adapter |
360082 |
19 |
O-Ring Adapter |
360048 |
20 |
Swivel Tee Adapter |
360005 |
21 |
O-Ring Adapter |
360045 |
22 |
Flow Restrictor |
780507 |
23 |
Hose Assembly |
424301 |
24 |
Hydraulic Hose |
821783 |
25 |
Hydraulic Hose |
821776 |
26 |
Hydraulic Hose |
821797 |
27 |
Spring Hose Clamp |
280264 |
28 |
Spring Hose Clamp |
280266 |
29 |
Hydraulic Cylinder |
290021 |
- |
Hydraulic Lift Cylinder Head Seal Kit |
290096 |
30 |
O-Ring Adapter |
360052 |
31 |
Hose Assembly |
424310 |
32 |
Hose Assembly |
424550 |
33 |
Cylinder Mount Pin with Groove |
887119 |
34 |
Washer |
257062 |
35 |
Whiz Nut |
253066 |
36 |
External Retainer |
263500 |
37 |
Clevis Pin |
261339 |
38 |
Cotter Pin |
260648 |
39 |
Hex Flange Whiz Bolt |
253193 |
40 |
Whiz Nut |
253035 |
41 |
Weight Mount |
643915 |
42 |
750 Counterweight |
323951 |
43 |
50 lb. Weight Cover |
729691 |
44 |
Hook Bolt |
240151 |
45 |
Whiz Nut |
253043 |
46 |
Flange Whiz Bolt |
253203 |
47 |
Wide Std. Steering Lever Assembly with Switch |
604779 |
48 |
.75 inch ID Vinyl Cap |
422095 |
49 |
Handle Grip |
422179 |
50 |
Hydraulic Lift Switch/Mount Assembly |
604799 |
