Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

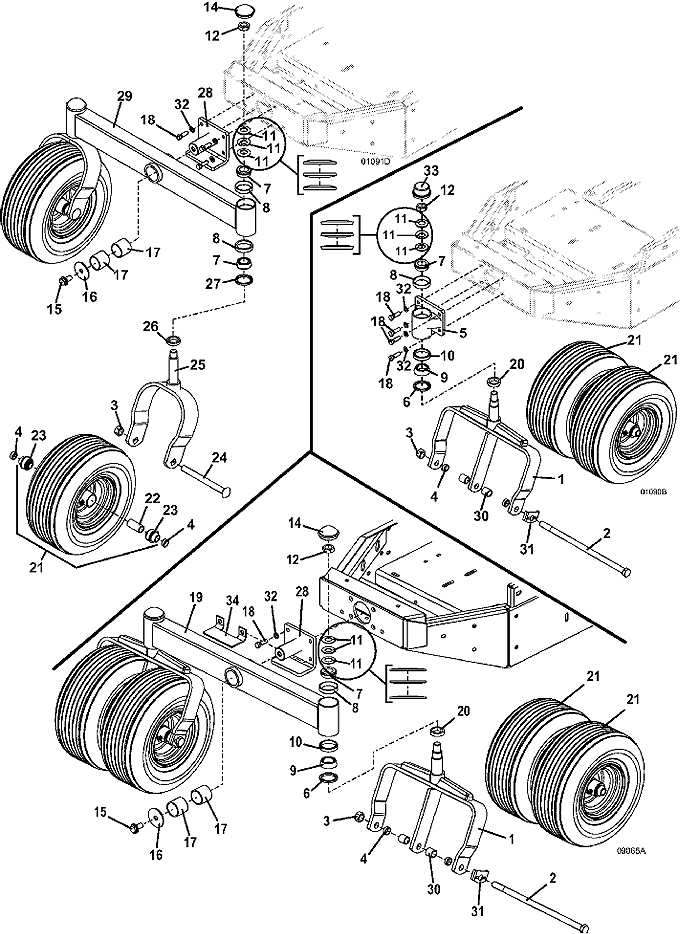

727T6 • Tail Wheel Options, part 1

2010½

Tail Wheel Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604366

2

Hex Bolt/p>

243922

3

Lock Nut

253970

4

Axle Spacer

902422

5

Dual Fork Pivot Housing Assembly (includes 4 each of items 18 & 32)

604595

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

9

Taper Bearing

122523

10

Bearing Cup

123521

11

Spring Washer

257320

12

Jam Nylon-Top Lock Nut

254505

14

Dust Cap

481434

15

Whiz Bolt

253243

16

Washer

257061

17

Reamed Oilite Bearing

833275

18

GR 8 Hex Bolt

243334

19

Wide Dual Beam

824508

20

Spacer

830420

21

13 x 6.5 x 6 Rear Wheel Assembly with Bearing

603975

-

Ribbed Tire

482355

-

Wheel without Tire - tan

483306

22

Center Rear Axle Spacer

902429

23

DP Wheel Ball Bearing

120048

24

Carriage Bolt

247725

25

Tail Wheel Fork with Tapered Bearing

645221

26

Spacer

282615

27

Seal

125855

28

Rear Axle Pivot Assembly (includes 4 each of items 18 & 32)

604597

29

Dual Wheel Beam

824510

30

Axle Spacer

902425

31

Fork Bolt Lock

723008

32

Lock Washer

257412

33

Dust Cap

481432

34

Axle Beam Spacer

900160
