Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

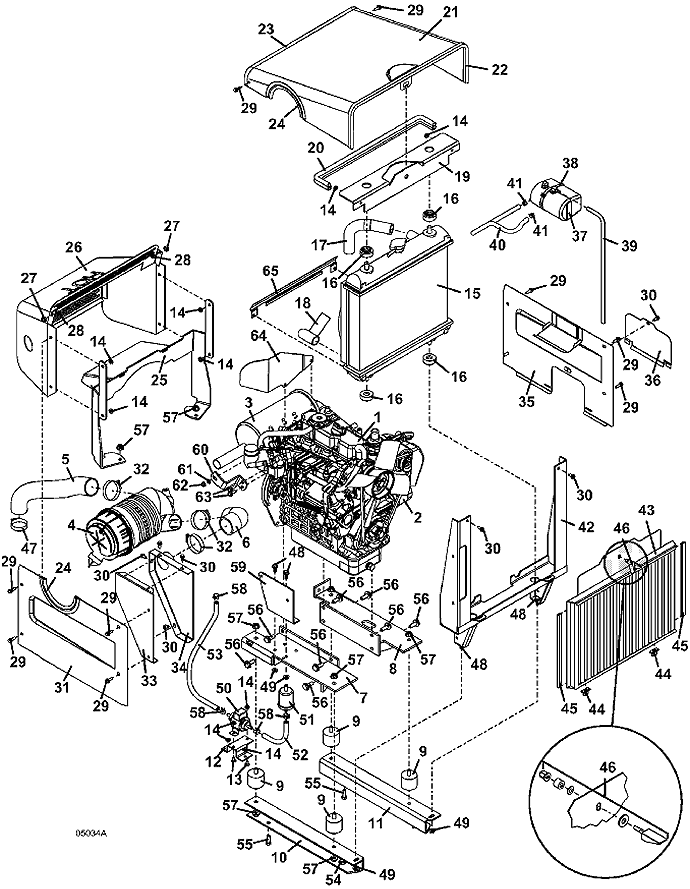

729G2 • Engine Assembly

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100172

2

Kubota Oil Filter

100800

3

Kubota Muffler

101235

-

Exhaust Flange Gasket

101040

4

Nelson 90 Degree Air Cleaner

100207

-

Clip for Air Cleaner Cover

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Air Hood

100203

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

5

Breather/Carburetor Hose

424535

6

Breather Inlet Hose

424520

7

Engine Mount - RT 902D

644286

8

Engine Mount - LT 902D

644287

9

Vibration Isolator

424076

10

902 Engine Mount Rail - right

725383

11

902 Engine Mount Rail - left

725384

12

Fuel Pump Mount 725/932

724572

13

Truss Whiz Bolt

253176

14

Whiz Nut

253025

15

Kubota 902 Radiator

101612

16

Radiator Mount Isolator Bushing

101080

17

Upper Radiator Hose

101058

18

Lower Radiator Hose

101059

19

Radiator Channel Clamp

729327

20

Hood Bulb Seal

822518

21

722D Upper Hood

644293

22

Front Hood Trim

822639

23

Rear Hood Trim

822637

24

Air Cleaner Trim Seal

822513

25

722D Hood Support

644807

26

902D Hood - W/A

644329

27

Spacer

902297

28

Nylon Insert Nut

253440

29

Hex Whiz Bolt

253175

30

Hex Whiz Bolt

253173

31

902 Side Hood

722712

32

Screw Type Hose Clamp

280305

33

Air Intake Box Mount

644066

34

Air Intake Box

644059

35

Left 722D W/A Hood Side

644322

36

Oil filter Cover

722722

37

Expansion Tank

422012

38

Tie

423154

39

Clear Vent Hose

821748

40

Fuel Line

821749

41

Spring Hose Clamp

280260

42

Radiator Mount - Lower 902

644658

43

902D Grille w/Guard

644668

44

Rear Belt Shield Isolator

422090

45

Radiator Grille Trim

822636

46

Swell Latch Assembly

604805

47

Screw Type Hose Clamp

280303

48

Flange Whiz Bolt

253192

49

Whiz Nut

253035

50

Electric Fuel Pump

101510

51

Kubota Fuel PreFilter

101005

52

Fuel Hose

821731

53

Fuel Hose

821728

54

Flange Whiz Bolt

253203

55

Hex Bolt

243330

56

Hex Bolt

271121

57

Whiz Nut

253043

58

Spring Hose Clamp

280261

59

Coil Mount

754224

60

Muffler Support Strap

732601

61

Lock Washer

257402

62

Hex Nut

274145

63

Hex Bolt

271021

64

Muffler Shield

723228

65

Fan Shield

721006
