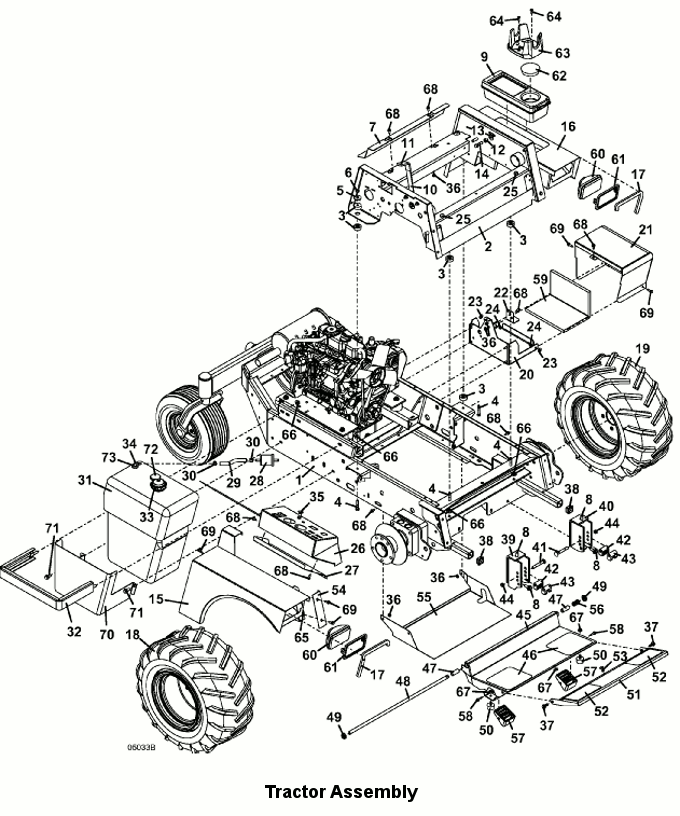

Item # |
Description |
Part Number |
1 |
Lower Frame 722D |
644297 |
2 |
Upper Frame G2 2005 |
643872 |
3 |
Step Bushing |
257037 |
4 |
Hex Bolt |
243220 |
5 |
Washer |
774020 |
6 |
Nylon Insert Nut |
253450 |
7 |
722D I-Coupler Shield |
722767 |
8 |
Flange Whiz Bolt |
253203 |
9 |
Tool Box |
422040 |
10 |
Throttle Assembly |
603833 |
- |
Throttle Cable Assembly |
323660 |
- |
Throttle Lever Stop |
722009 |
- |
Heavy Duty Throttle Stop |
722736 |
11 |
Handle Grip |
422150 |
12 |
Spacer |
902280 |
13 |
Washer |
257040 |
14 |
Hex Bolt |
243335 |
15 |
Fender w/Decal 700/900S right |
693210 |
- |
729 Trim Decal -right .06 |
163478 |
16 |
Fender w/Decal 700/900S left |
693211 |
- |
729 Trim Decal -left .06 |
163479 |
17 |
Fender Edge Trim - 300/700/900 |
822635 |
18 |
right Wheel & Bar Tread Tire, 22 x 11 x 10 |
483942 |
- |
5 Bolt Wheel Only, 10 x 8.5 |
483420 |
- |
Bar Tread Tire Only, 22 x 11 x 10 |
482483 |
- |
Wheel & Turf Tire, 22 x 10 x 10 |
483946 |
- |
Turf Tire Only, 22 x 10 x 10 |
482473 |
19 |
left Wheel & Bar Tread Tire, 22 x 11 x 10 |
483943 |
- |
5 Bolt Wheel Only, 10 x 8.5 |
483420 |
- |
Bar Tread Tire Only, 22 x 11 x 10 |
482483 |
- |
Wheel & Turf Tire, 22 x 10 x 10 |
483946 |
- |
Turf Tire Only, 22 x 10 x 10 |
482473 |
20 |
Battery Box w/o Draw Latch |
644163 |
21 |
Battery Box Lid w/o Draw Latch |
644478 |
22 |
Battery Hold Down Bracket |
754135 |
23 |
Washer |
257020 |
24 |
Nylon Insert Nut |
253440 |
25 |
Rubber Bumper |
424015 |
26 |
Console w/Decal for Liquid-Cooled Gas Engine |
693105 |
27 |
Fill Panel - 96 Console |
721152 |
28 |
Kubota Fuel Prefilter |
101005 |
29 |
Fuel Hose |
821727 |
30 |
Spring Hose Clamp |
280261 |
31 |
8 Gallon Gas Tank Assembly .312 BARB |
604845 |
32 |
8 Gallon Fuel Tank Mounting Bracket |
644826 |
33 |
Cap w/Fuel Level |
100210 |
34 |
Fuel Tube |
363930 |
35 |
Mechanical Choke |
142231 |
36 |
Whiz Nut |
253025 |
37 |
Hex Flange Whiz Bolt |
253192 |
38 |
Square Plastic Plug |
422065 |
39 |
QD 700/900 Deck Mount - right |
643092 |
40 |
QD 700/900 Deck Mount - left |
643093 |
41 |
Special Carriage Bolt |
247280 |
42 |
Deck Mount Bushing |
282575 |
43 |
Floating Deck Mount Bushing |
282576 |
44 |
Nylon Insert Nut |
253460 |
45 |
Adjustable Foot Platform Assembly - 700/900 |
604346 |
46 |
Foot Rest Tread |
420905 |
47 |
Nylon Bearing |
422615 |
48 |
Foot Platform Pivot Rod - 700 |
780673 |
49 |
Nylon Insert Nut |
253470 |
50 |
Rubber Bumper |
424052 |
51 |
Foot Platform Extension - 700 |
603301 |
52 |
Foot Rest Extension Tread |
420904 |
53 |
Carriage Bolt |
247130 |
54 |
Fender Cover Panel - right |
722062 |
55 |
Trash Shield - G2 |
721383 |
56 |
Compression Spring |
283312 |
57 |
Footrest Isolator Block |
424100 |
58 |
Hex Bolt |
243026 |
59 |
Battery Tray Pad |
427278 |
60 |
Flood Worklamp |
182253 |
61 |
Snap Mount Worklamp Bezel |
182251 |
62 |
Cup Hole Plug |
422066 |
63 |
Cup Holder |
150225 |
64 |
Cap Screw |
259030 |
- |
Nut |
254436 |
65 |
Speed Nut |
254431 |
66 |
Whiz Nut |
253043 |
67 |
Whiz Nut |
253035 |
68 |
Hex Whiz Bolt |
253173 |
69 |
Hex Whiz Bolt |
253175 |
70 |
8 Gallon Tank Shield |
723339 |
71 |
Whiz Bolt |
253200 |
72 |
InTank Fuel Gauge |
141144 |
- |
Grommet |
424275 |
73 |
Fuel Tube Bushing |
101875 |
