Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

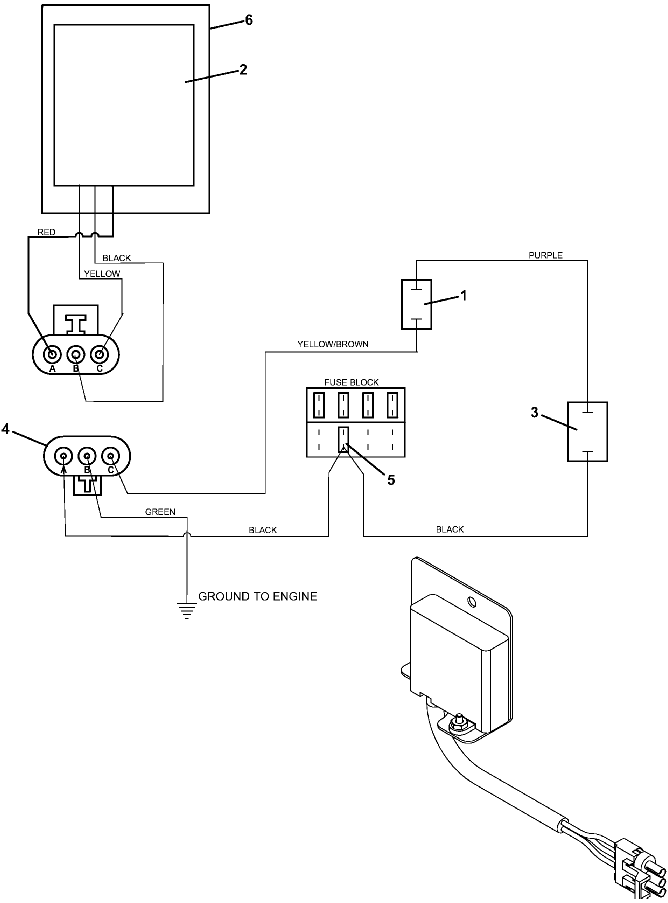

729T6 • Wiring for Optional Hydraulic Lift

2008

Hydraulic Lift Wiring

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydraulic Valve Solenoid

144950

2

Power Components Tilt Switch

183710

3

Sealed Dome Switch

183940

-

Momentary Toggle

183954

4

3-Way Male Terminal Connector WP

184973

5

Auto ATC Fuse - 7.50

181460

6

Tilt Switch Mount

722747
