Genuine OEM Grasshopper Lawn Mower Parts

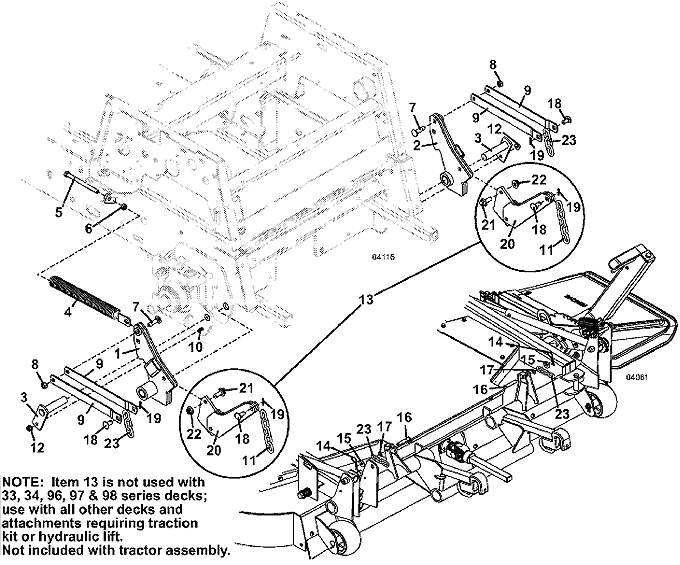

Genuine OEM Grasshopper® Mower Parts Diagrams

729T6 • Traction Kit

2009

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Rocker (without Extension) - right

603699

-

Oilite Bearing

121764

2

Rocker (without Extension) - left

603700

-

Oilite Bearing

121764

3

Traction Kit Pin

644635

4

Spring and Plug Nut Assembly

604838

5

Hex Bolt

243395

6

Nut

254450

7

Carriage Bolt

247254

8

Lock Nut

253890

9

600 w/SL Deck Lift Strap

732410

10

Hex Flange Whiz Bolt

253192

11

Lift Chain - 5 Links

820320

12

Whiz Nut

253035

13

Rocker Extension Kit - 700/900

604708

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin

261362

17

Push-On Retainer

262950

18

Clevis Pin

261339

19

Cotter Pin

260648

20

Rocker Arm Extension

644706

21

Flange Whiz Bolt

253203

22

Whiz Nut

253043

23

Lift Chain - 3 Links

820317
