Genuine OEM Grasshopper® Mower Parts Diagrams

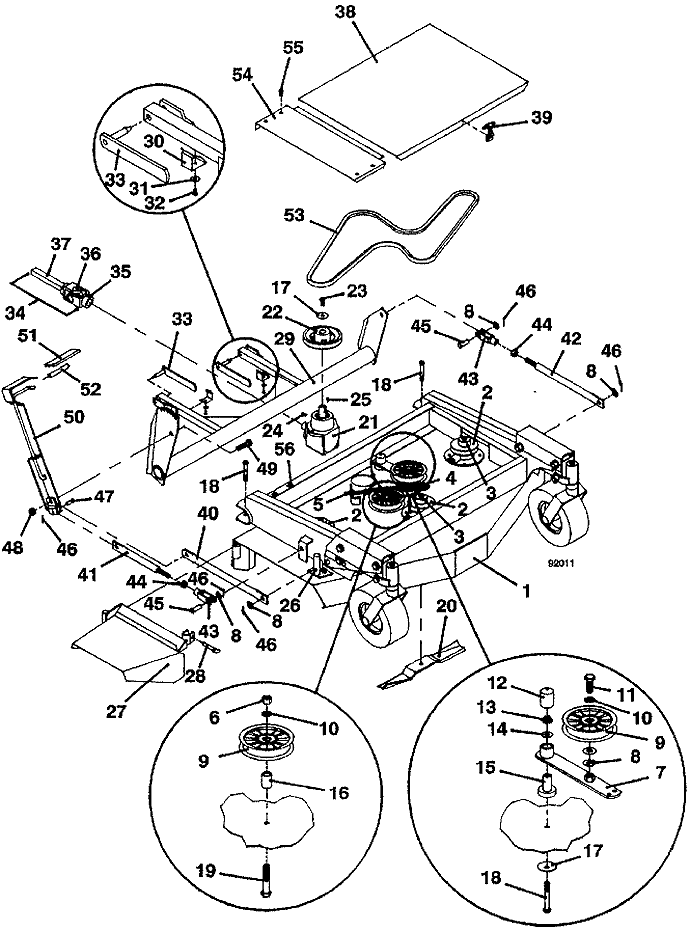

9044 Deck • Mower Assembly

1993

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number
1 DECK - 9044 MOWER 643258
2 SHEAVE 414675
3 SPACER 282630
4 SPRING - EXTENSION W/SWIVEL 283820
5 J BOLT - IDLER ADJUSTMENT 730391
6 NUT 254470
7 IDLER ARM W/BEARING & PEDESTAL 824502
8 WASHER 257062
9 IDLER 393225
10 WASHER - LOCK 257432
11 HEX BOLT 243565
12 CAP VINYL 1.125 ID 422098
13 NUT WHIZ 253043
14 WASHER 257040
15 BEARING PEDESTAL 121650
16 SPACER - IDLER 902325
17 WASHER - CUPPED 257041
18 HEX BOLT 243365
19 HEX BOLT 243600
20 BLADE -15 HI-LIFT NOTCH 320234
  BLADE -15 MED LIFT 320231
21 GEARBOX RT ANGLE CCW 390024
22 SHEAVE 415876
23 HEX BOLT 243331
24 KEY WOODRUFF 281833
25 KEY WOODRUFF 281828
26 SHAFT - CLEVIS 643235
27 SHIELD - DISCHARGE 90 SERIES 643747
28 HITCH PIN 260400
29 LIFT ARM - 44 MOWER 643525
30 CLIP ATTACHING PIN 280390
31 WASHER - PIN CLIP 770025
32 DRIVE SCREW 262644
33 PIN - ATTACHING 643625
34 UN HALF SHAFT 398525
35 YOKE 401010
36 CROSS & BEARING 121010
37 YOKE & SHAFT 402605
38 SHIELD ASSY - 9044 603769
39 LATCH RUBBER DRAW 281301
40 LINKAGE - LIFT DECK RT 44 734069
41 LINKAGE - LIFT LEVER 603562
42 LINKAGE ARM - 44 DECK 603563
43 YOKE CLEVIS 265554
44 NUT 254475
45 CLEVIS PIN 261426
46 COTTER PIN 253930
47 CLEVIS PIN 261346
48 NUT LOCK 253930
49 HEX BOLT 243580
50 LEVER - DECK LIFT 382990
51 GRIP HANDLE 422155
52 GRIP HANDLE 422158
53 BELT 382990
54 SHIELD - BELT 9044 RT 722308
55 BOLT WHIZ HEX 253173
56 NUT 254431
57 DECAL SET - MOWER SAFETY 603280

***********THIS PAGE IS UNDER CONSTRUCTION************
