Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

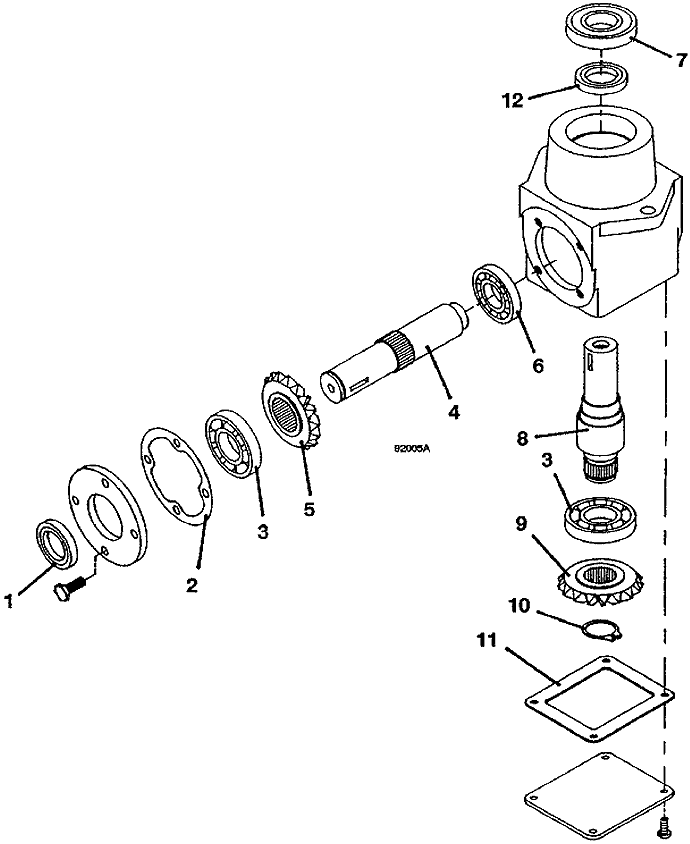

9044 Deck • Right Angle Gearbox Assembly

1995

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seal

125336

2

Gearbox Cap Gasket

420201

3

Ball Bearing

120071

4

1.000 Shaft

393517

5

.995 8 Pitch Bevel Gear

392501

6

Ball Bearing

120065

7

Double Seal Ball Bearing

120080

8

.875 Shaft

393513

9

.865 8 Pitch Bevel Gear

392500

10

External Retainer

263540

11

Gearbox Cover Gasket

420200

12

Oil Seal

125345

13

Counter-Clockwise Right Angle Gearbox

390024

return to 9044 index return to top of page
