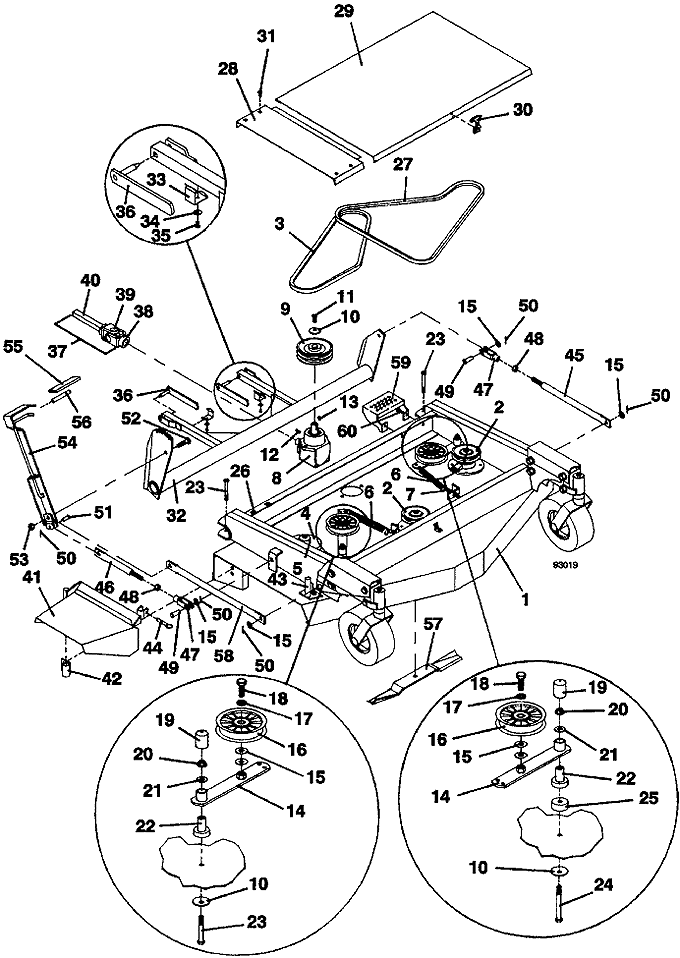

9052 Deck • Mower Assembly

1994

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

9052 Deck Weldment

643267

2

Sheave

414686

3

Belt

382800

4

Sheave

414685

5

Spacer

282630

6

Extension Spring with Swivel

283820

7

Idler Adjustment J Bolt

730391

8

Counter Clockwise Right Angle Gearbox

390024

9

Sheave

416116

10

Cupped Washer

257041

11

Hex Bolt

243331

12

Woodruff Key

281833

13

Woodruff Key

281828

14

Idler Arm with Pedestal Bearing

824502

15

Washer

257062

16

Idler

393225

17

Lock Washer

257432

18

Hex Bolt

243565

19

Vinyl Cap

422098

20

Nut

253043

21

Washer

257040

22

Pedestal Bearing

121650

23

Hex Bolt

243365

24

Hex Bolt

243385

25

Idler Arm Spacer

902317

26

Speed Nut

254431

27

Belt

382037

28

9048 /9052 right Belt Shield

722284

29

9052 Shield Assembly

603781

30

Rubber Draw Latch

281301

31

Hex Whiz Bolt

253173

32

9052 Mower Lift Arm

643498

33

Attaching Pin Clip

280390

34

Pin Clip Washer

770025

35

Drive Screw

262644

36

Attaching Pin

643625

37

UN Half Shaft

398525

38

Yoke

401010

39

Cross & Bearing

121010

40

Yoke & Shaft

402605

41

90 Series Discharge Shield

643747

42

Vac Housing Pivot Mount

643632

43

Clevis Shaft

643235

44

Hitch Pin

260400

45

52 Deck Linkage Arm

603564

46

Lift Lever Linkage

603562

47

Clevis Yoke

265554

48

Nut

254475

49

Clevis Pin

261426

50

Cotter Pin

260650

51

Clevis Pin

261346

52

Hex Bolt

243580

53

Lock Nut

253930

54

Deck Lift Lever

643529

55

Handle Grip

422155

56

Handle Grip

422158

57

18" High Lift Notch Blade

320239

-

18" Medium Lift Blade

320236

-

18" Contour Blade

320238

-

18" Extreme High Lift Blade

320241

58

48/52 Right Deck Lift Linkage

734073

59

52 Deck Step

729283

60

Hex Flange Whiz Bolt

253192

-

Whiz Nut

253035

61

Mower Safety Decal Set

603280
